Controls
51812
Volvo Penta controls are available in single side-mount
A, single top-mount (not shown), or twin top-mount B
configurations. The control levers have an adjustable
friction brake and a neutral position switch to ensure
that the engine cannot be started when the drive is in
gear.
Your boat may be equipped with remote controls other
than those described below. If Volvo Penta controls
are not used, ask your dealer for operating instructions
for the remote control used in your boat since operation
and function may differ from Volvo Penta remote con-
trols.
51813
51814

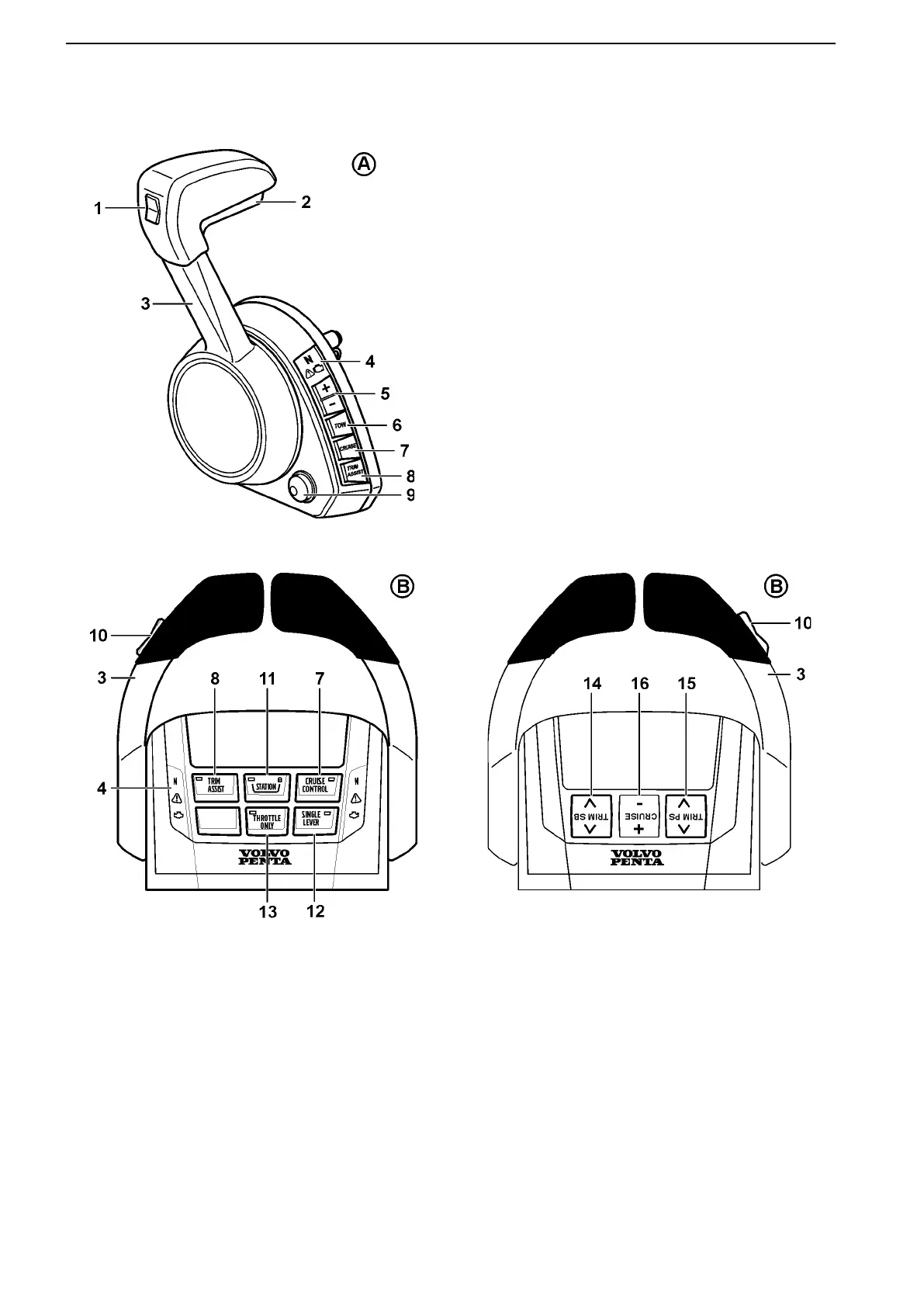

1. Power Trim Adjust 9. Safety Lanyard/Emergency Stop Switch
2. Neutral Interlock 10. Power Trim Adjust
3. Engine Throttle Control Lever 11. Station Activation (On/Off/Lock)
4. Status Indication Lights 12. Single Lever Mode (On/Off)
5. Tow/Cruise Control Adjust 13. Throttle Only Mode (On/Off)
6. Tow Mode (On/Off) 14. Power Trim Adjust – Starboard
7. Cruise Control (On/Off) 15. Power Trim Adjust – Port
8. Power Trim Assist (On/Off) 16. Cruise Control – Speed Adjustment
