4

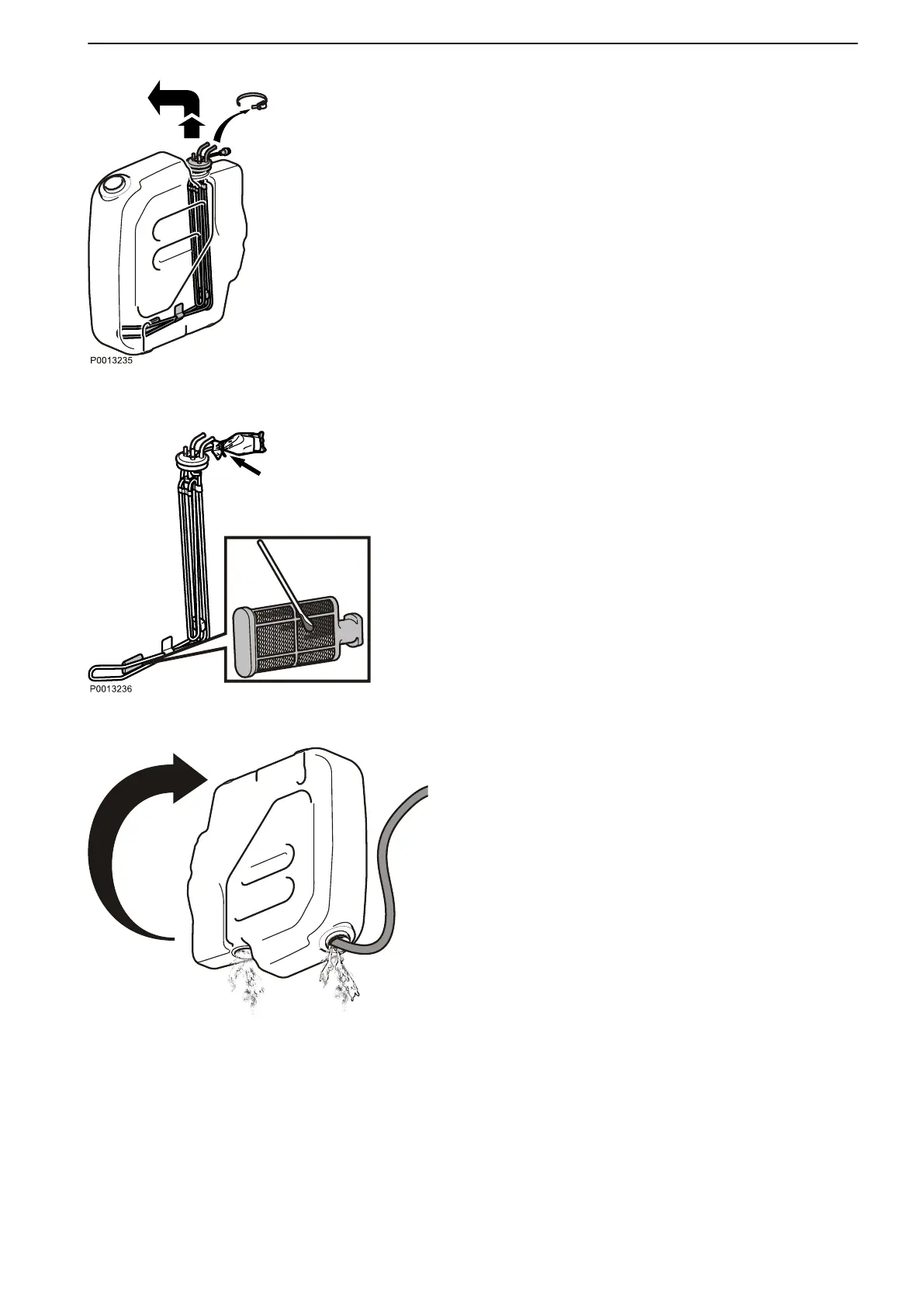

Undo and remove the tank fittings.
5
Check the strainer on the fittings: clean as
necessary.
NOTICE!
Always replace a damaged strainer.
6
Flush the tank with hot water for at least 10
minutes.
Make sure the AdBlue/DEF tank is completely
drained of water afterwards.
p0013237
Maintenance
85
47711097 09-2018 © AB VOLVO PENTA
86
88
Table of Contents
Table of Contents
3
Foreword
5
Safety Information
6
Introduction
16
Fuel, Oils and Coolant
17
Maintenance and Replacement Parts
18
Excessive Strain on a Product and Components
18
Environmental Care
19
Emission Aftertreatment System
21
Volvo Penta Dealer Network
22
Volvo Penta Action Service
22
Presentation
23
Engines
23
EMS (Engine Management System)
24
EATS (Exhaust Aftertreatment System)
25
Major Components
28
Principle Solution
29
Operation
32
Instruments and Controls
34
Display Control Unit
34
DU (Display Unit)
41
CIU (Control Interface Unit)
45
Easy Link Instruments
45
Starting
46
Before Starting
46
Starting the Engine
47
DCU (Display Control Unit)
47
Starting in Extreme Cold
48
Never Use Start Spray
49
Starting Using Auxiliary Batteries
49
Operation
50
Reading the Instruments
50
Alarms
50
Maneuvering
51
Operation at Low Load
51
Engine Shutdown
53
Before Engine Shutdown
53
Stop the Engine
53
Auxiliary Stop
54
After Engine Shutdown
54
Fault Handling
55
DU (Display Unit)
55
Easy Link Instruments
56
Erasing Fault Codes
56
Fault Tracing
58
EATS Warnings and Inducements
60
Fault Code Register
62
Maintenance Schedule
64
Maintenance
65
Orientation
66
Engine, General
67
Air Filter, Change
68
Charge Air Pipe, Leakage Check
69
Drive Belt, Check and Change
69
Lubrication System
71
Oil Level, Checking and Topping up
71
Oil Filter, Change
72
Engine Oil, Change
73
Fuel System
74
Draining Condensate, Fuel System
74
Engine Fuel Filter Replacement
75
Fuel Pre-Filter, Change
76
Fuel System, Bleeding
77
Cooling System
78
Coolant Level, Checking and Topping up
79
Coolant, Draining
80
Charge Air Cooler, External Cleaning
81
Cooling System, Cleaning
81
Inlet and Exhaust System
83
Filling Adblue®/Def
83
Adblue/Def Tank, Cleaning
86
Electrical System
89
Main Switch
89
Fuses
89
Electrical Connections
89
Battery
90
Storage
92
Technical Data
94
Engines
94
Lubrication System
95
Oil Grade and Oil Change Interval
95
Viscosity
95
Fuel System
96
Cooling System
98
Water Quality
99
Electrical System
100
Identification Numbers
101
Index
105
