Volvo Penta TAMD41M-A User Manual

31
Repair Instructions
Engine fixture attachment
Fixture 999 9946 is used to attach the engine to unit
stand 998 6485.

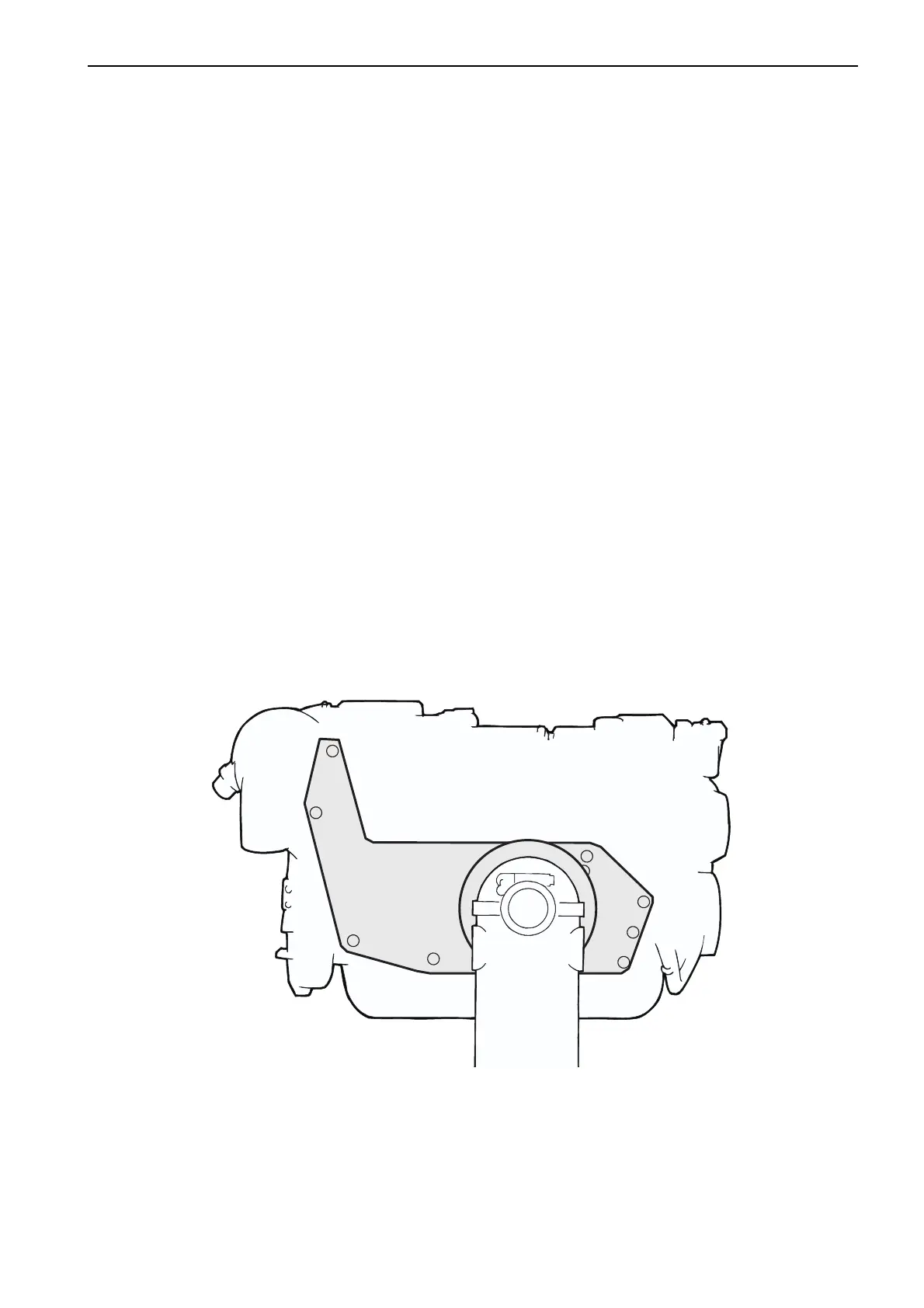

The fixture is screwed onto the engine’s right side ac-
cording to the picture below.
NOTE! It is important that the instructions for the
number and size of screws is followed so that a se-
cure attachment of the engine is obtained.
Necessary screws:
41/42/43/44/300 series
2 screws M12x30 mm
2 screws M16x30 mm
The following components must be removed from the
engine before the fixture can be attached and the en-
gine installed on the stand:
Compressor (42/43/44/300 series), heat exchanger
with expansion tank, oil cooler with oil distribution
housing, front engine mounting, oil pipe to turbo, dip-
stick pipe.

Volvo Penta TAMD41M-A Specifications

General

Number of Cylinders	6
Max RPM	3800 rpm
Fuel System	Direct Injection
Aspiration	Turbocharged
Compression Ratio	17.5:1
Cooling System	Water-cooled
Weight	500 kg
Power Output	200 hp (149 kW)
