Lifting eye with pins that are to be adapted to each engine's rear hole pattern.
Lifting eye for connecting lift hook with chain that is to be installed depending on the engine to be lifted.
Outer square pipe with pins.
Inner square pipe with telescopic function that is length-adapted/rotated 180° depending on the engine to be
lifted.
Lifting eye with pin that is to be installed in the D12D-engine's lifting eye.
Lifting eye with pins that are to be installed in the D9B/D16E-engines' lifting eyes and lifting device hook.
A, B, C, D, and E are pin markings to identify where the pins are to be installed.
Other included equipment
Supplied equipment.
Figure 8

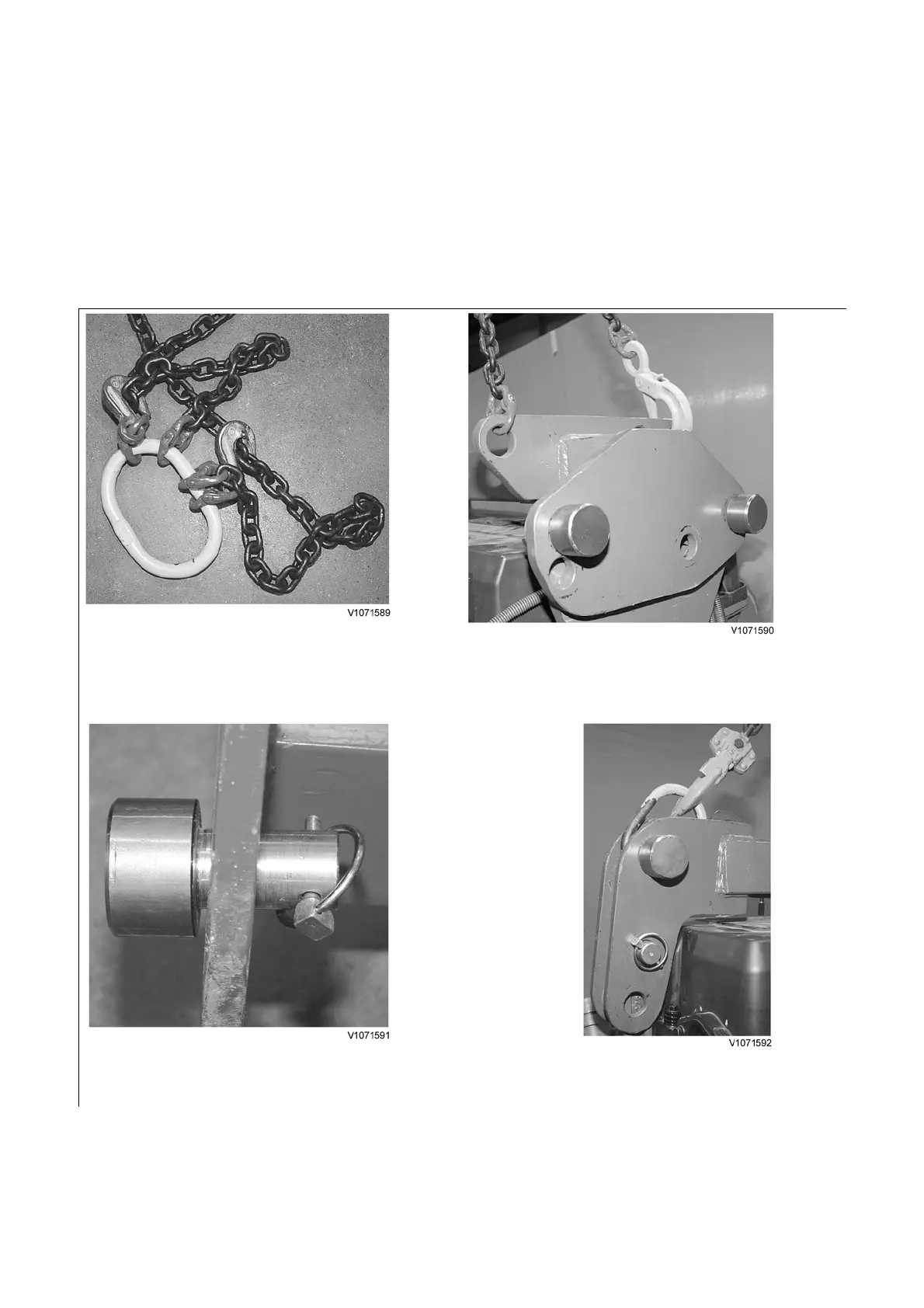

Lift ring for connecting to lifting equipment. Shackles
and chain with shortening hooks.
Figure 9
Fixed shackle and hook
Figure 10
Pins with lock pin
Figure 11
Lift ring
Not supplied equipment
The ratchet block 1.5 ton (not supplied) is used to change and adapt the engine's lift angle when lifting the engine in and
out of the machine.
