Steering joint lock
4. Fit the lifting tool onto the front axle and the front bogie axle and tighten the nuts crosswise 200 Nm (148 lbf ft).

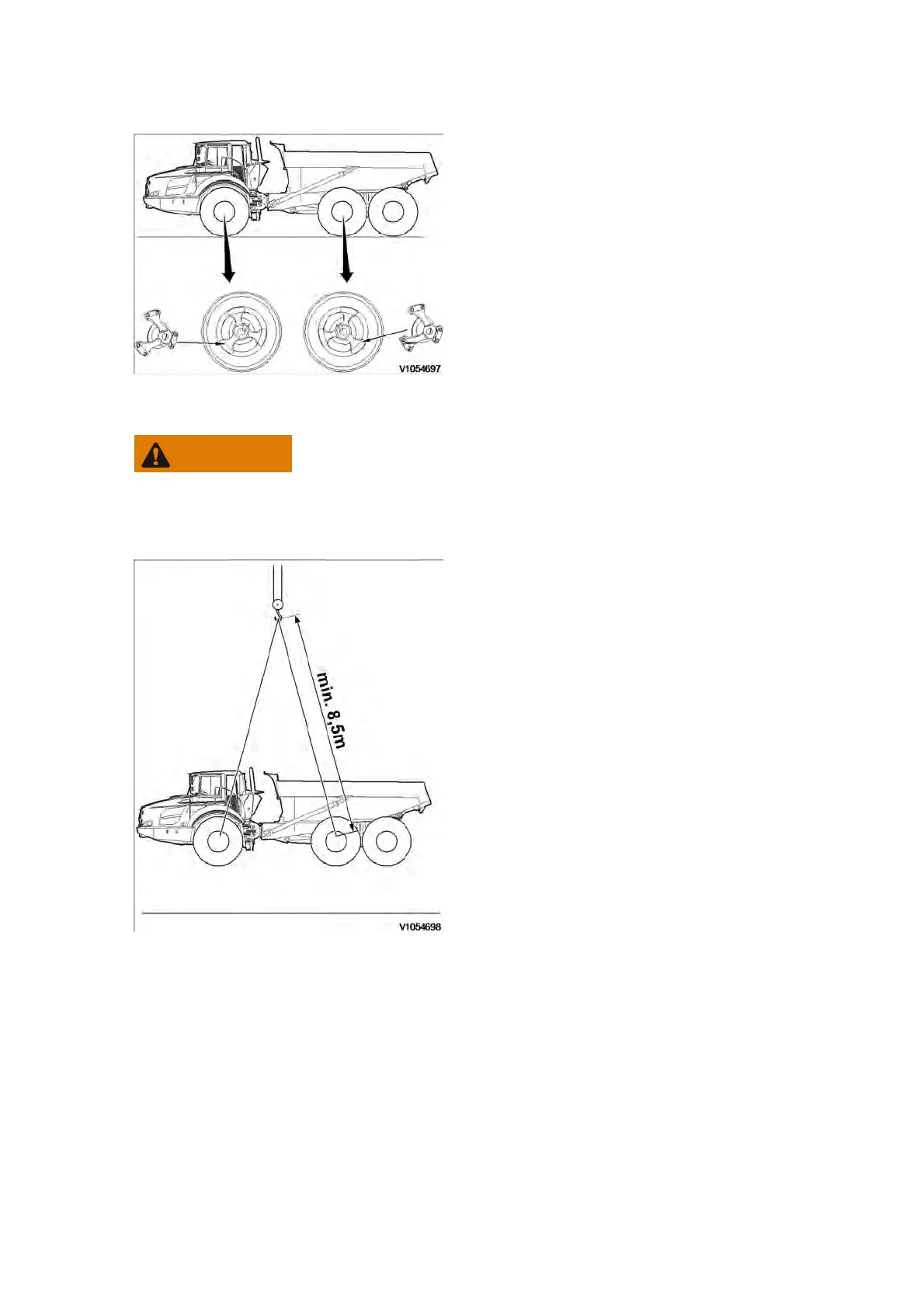

Figure 2
WARNING
Do not lift the machine by the load body eyes.
The four lifting slings must have the same length and be at least 8.5 m (335 in)
5. Connect four lifting slings to the lifting tools.
Figure 3
6. Lift the machine by the lifting eyes on the wheels.
7. Lower the machine.
8. Disconnect the steering joint lock before the machine is operated.
9. Remove the lifting tool and store the associated nuts on the cable.
