Service and maintenance
104 Engine
Draining
1 Place the machine in service position, see page 89.
2 Let down the front grille.

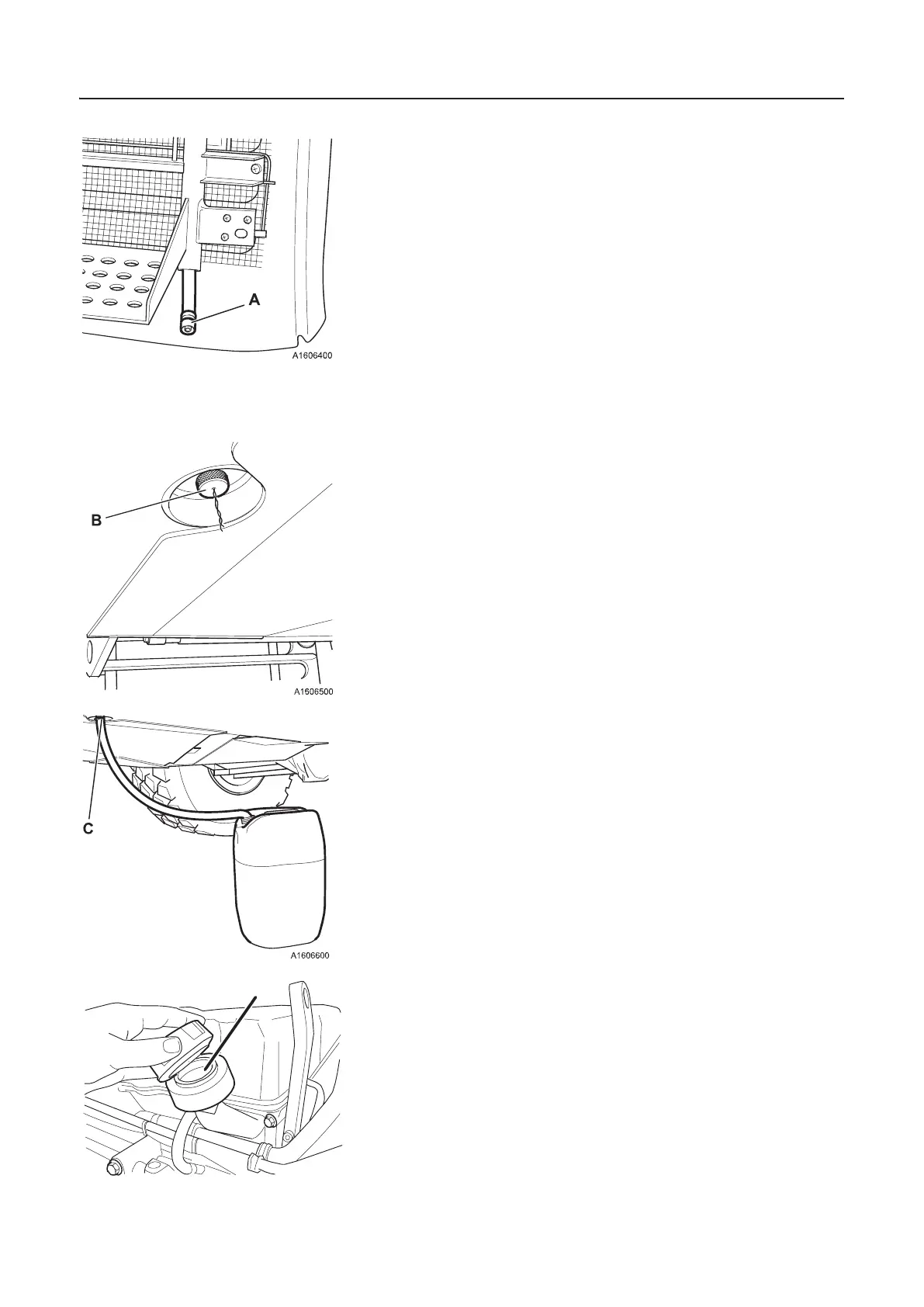

3 Detach draining hose (A) from the front grille.
4 Remove protective cap (B) from over draining connection (C).
5 Connect the draining hose to the draining connection.
6 Drain the oil.
7 Disconnect the hose from the draining connection.
8 Install the protective cap over the draining connection on the oil
sump.
9 Change engine oil filter, see page 105.
Take care of filters/oils/liquids in an environmentally safe way,
see page 91.
Filling
1 Fill with oil through oil filler pipe (D).
2 Put the draining hose back in the front grille.
3 Hinge up the front grille.
Oil capacity when changing:
A35E/A35E FS: approx. 49 litres (12.9 US gal) including filter.
A40E/A40E FS: approx. 54 litres (14.3 US gal) including filter.
For oil quality grades, see page 167.
D
1014864
