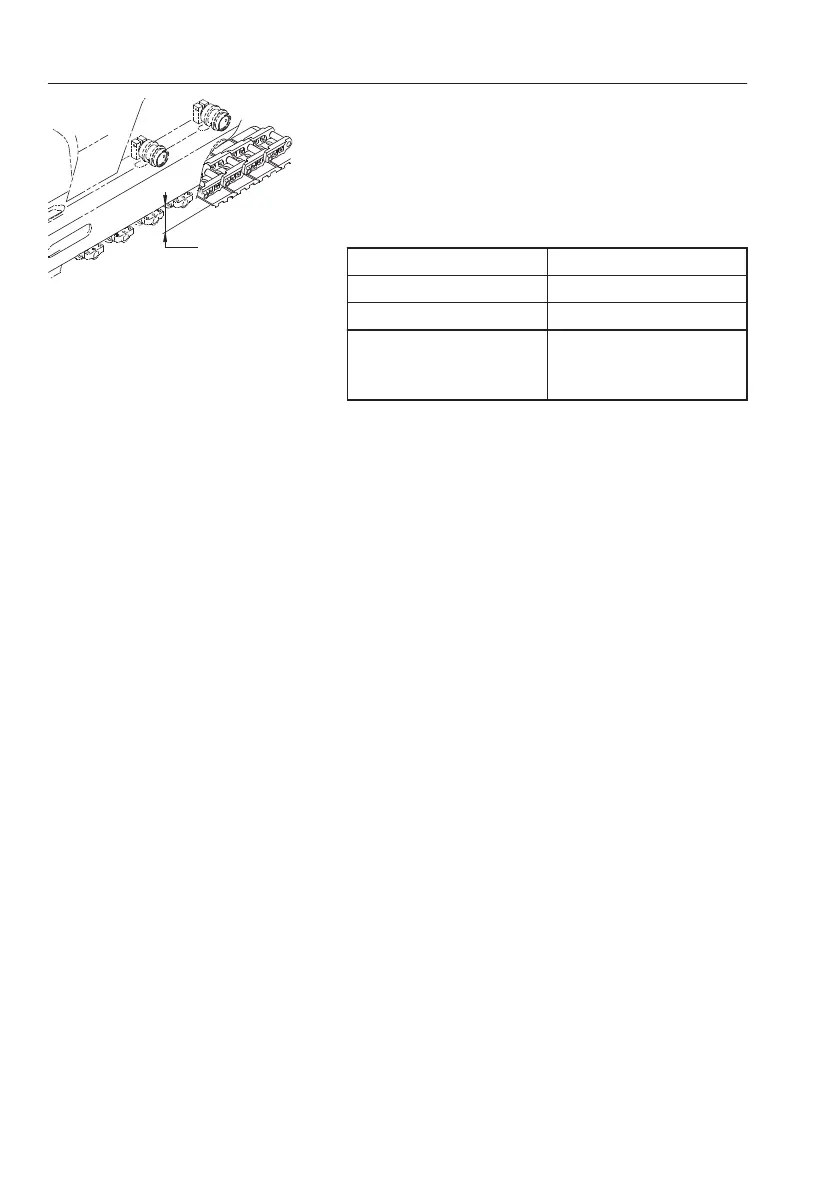

3 Measure the track slack (L) at the center of track
frame, the clearance between the bottom of
track frame and the upper surface of track shoe.
4 Adjust the track tension according to the soil
characteristics.
Recommended track tension is as below,
W
W
o
o
r
r
k
k
i
i
n
n
g
g
c
c
o
o
n
n
d
d
i
i
t
t
i
i
o
o
n
n
C
C
l
l
e
e
a
a
r
r
a
a
n
n
c
c
e
e
(
(
L
L
)
)
(
(
m
m
m
m
)
)
(
(
i
i
n
n
)
)
General soil 320 - 340 (12.6 - 13.4)
Rocky ground 300 - 320 (11.8 - 12.6)
Moderate soil like
gravel, sand, snow, and
so on.
340 - 360 (13.4 - 14.2)
