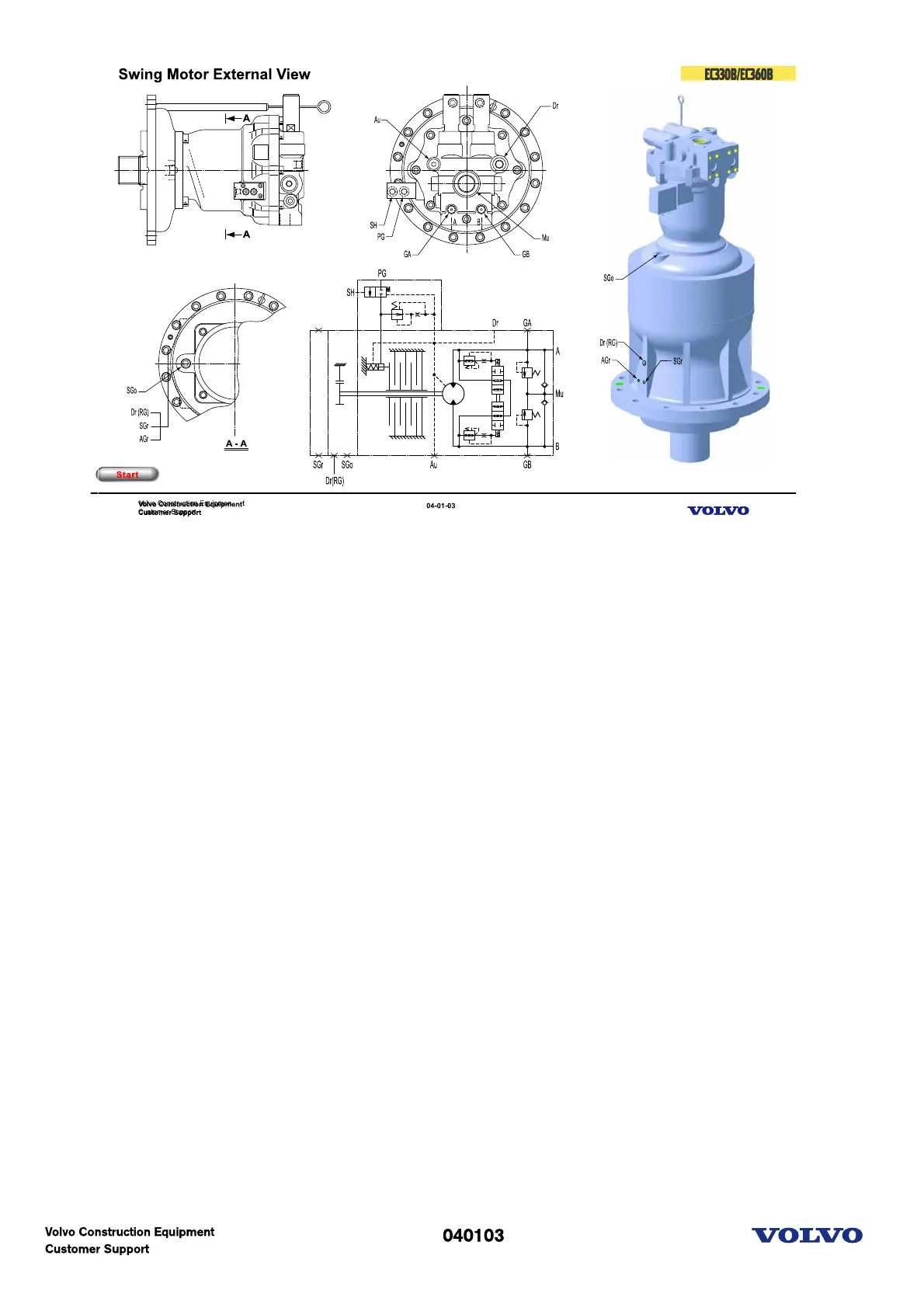

External view
Motor
- Displacement : 250cc/rev
- Relief pressure : 260 kgf/cm^2(25.5 MPa)
- Time delay : 6.5 (+/- 1.5) sec.
Gearbox
- Gear ratio : 24.37
- Oil : SAE NO. 90 (6 liter)
*Compare the circuit & port on the motor.
A,B : Main
Mu : Anti-cavitation
Dr : Case drain
PG : Brake releasing
SH : Brake pilot
GA,GB: Pressure checking
SGo : Oil filling
Au : Air vent port for oil filling
Dr(RG): Gear oil drain
SGr : Grease filling port
AGr : Air vent port for grease filling
