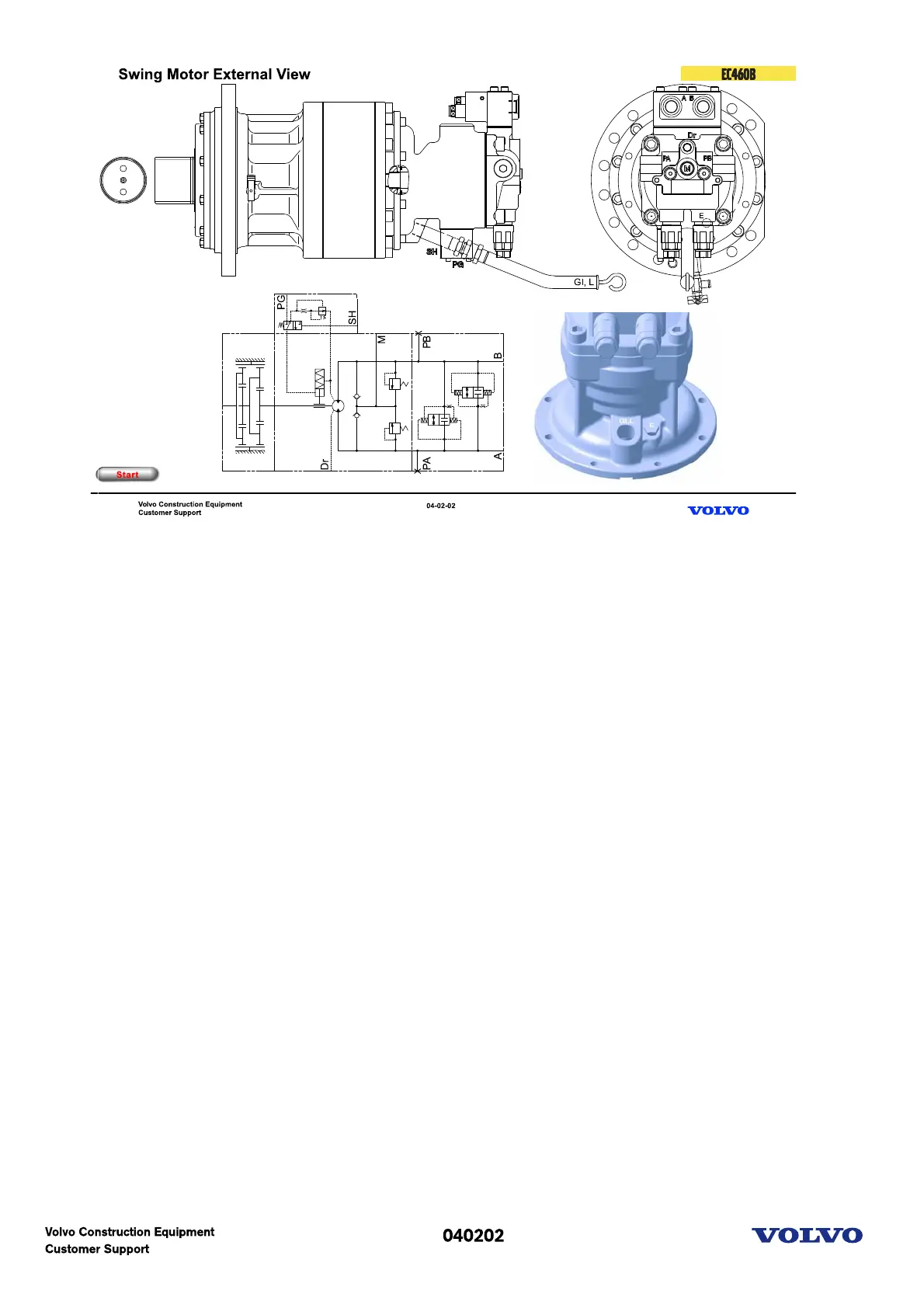

External view
Motor
- Displacement : 121.5cc/rev
- Relief pressure : 250 kgf/cm^2
- Time delay : 5 sec.
Gearbox
- Gear ratio : 20.01
- Oil : SAE NO. 90 (6 liter)
*Compare the circuit & port on the motor.
A,B : Main
M : Anti-cavitation
Dr : Case drain
PG : Brake releasing
SH : Brake pilot
PA,PB: Pressure checking
GI,L : Gear oil filling & Oil level checking
GO : Gear oil outlet
E: Air vent port for gear oil filling
