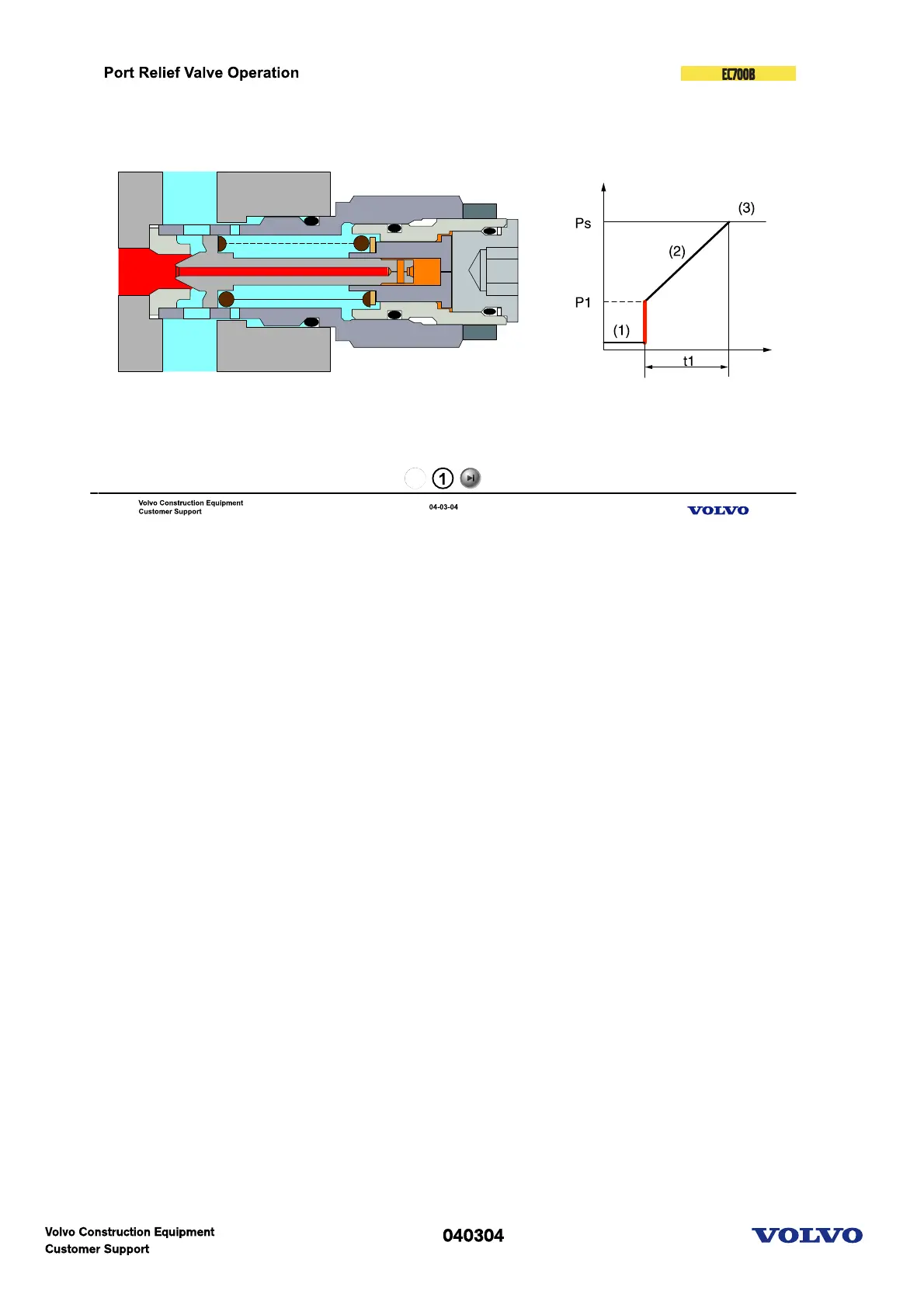

Relief Valve
1 : Pressure increase
2 : Gradual pressure increase
The inner cylinder push the spring seat and during the movement,the pressure increases gradualy.
3 : Setting pressure
