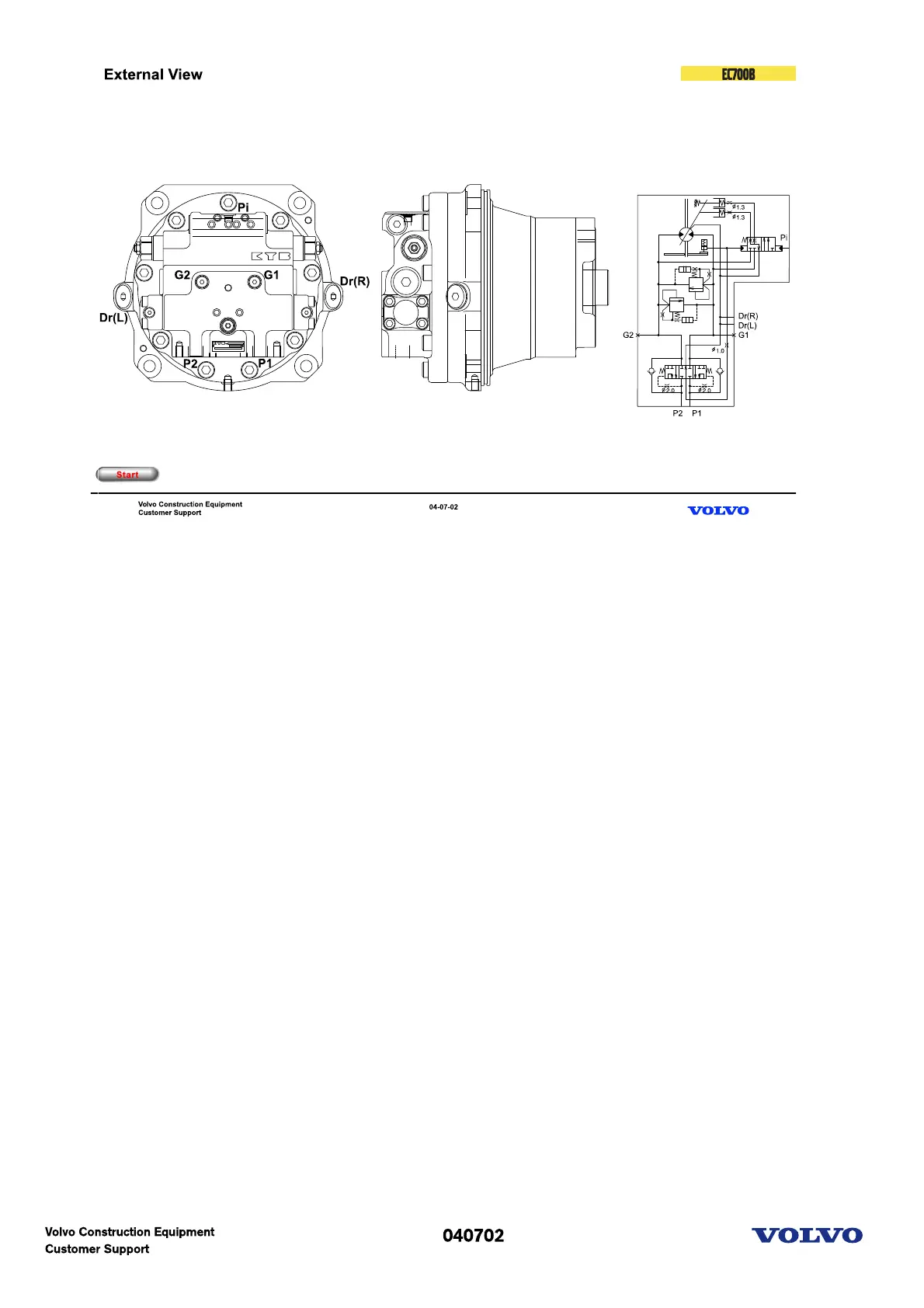

Spec & External View
Specification
Model : MSF-340VP
Type : variable swash plate,piston motor
Displacement : 304.1(Large) / 196.8(Small) cc/rev
Relief valve pressure : 350 kgf/cm2
Speed changeover
pressure (High -> low) : 263 kgf/cm2 at Pi=40 kgf/cm2
Brake release pressure : 18.4 kgf/cm2
Drain pressure
- Continuous : Lower than 2 kgf/cm2
- Intermittent : Lower than 5 kgf/cm2
G1,G2 : Gauge port
Dr(R),Dr(L) : Drain
Pi : Pilot signal for travel speed changeover
P1,P2 : In & Out port
