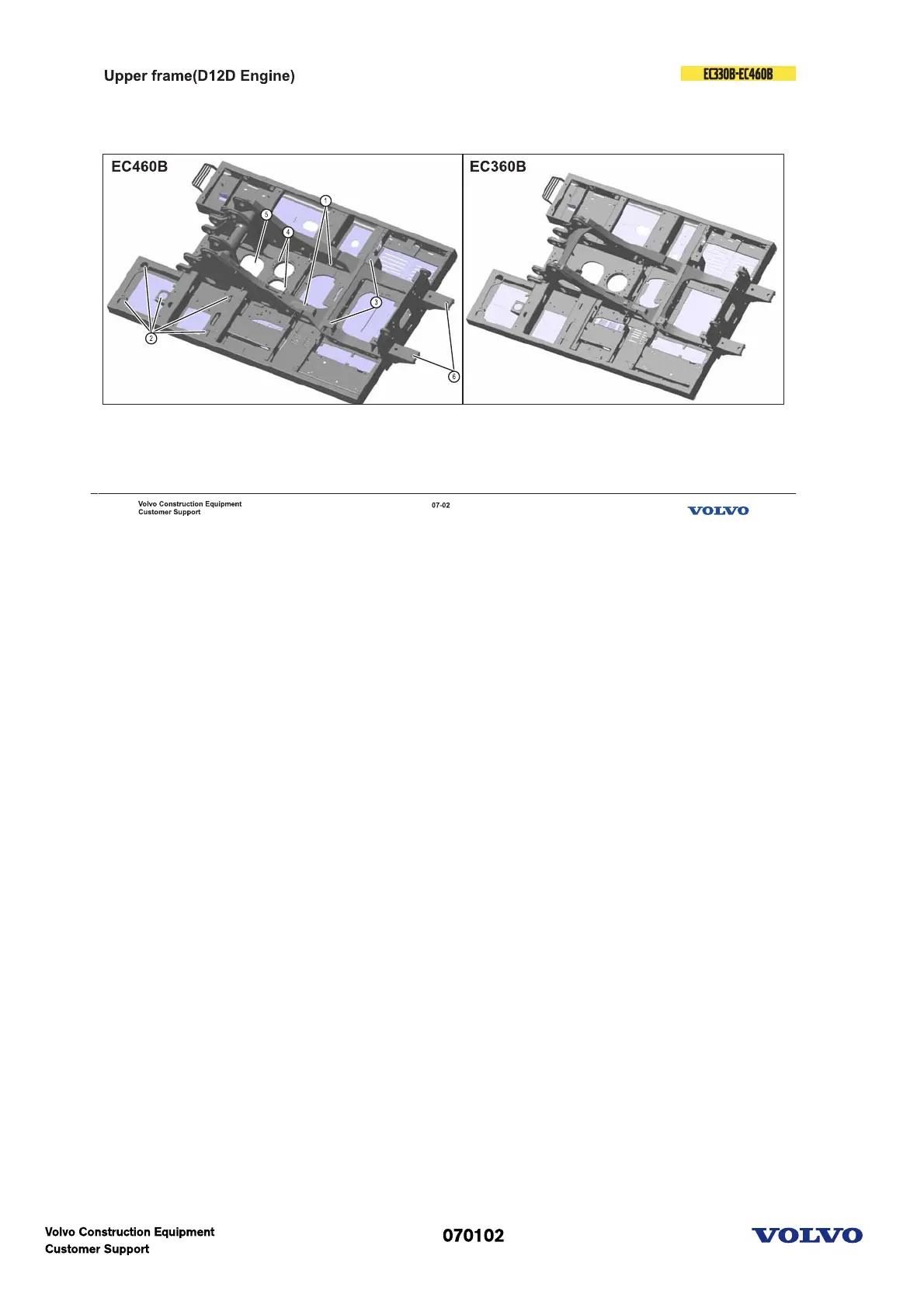

Upper frame(D12D engine)
1. Center frame
2. Cabin mouting position
3. Engine mounting position
4. Swing motor mounting position
5. Turning joint mounting position
6. Counterweight mounting position
