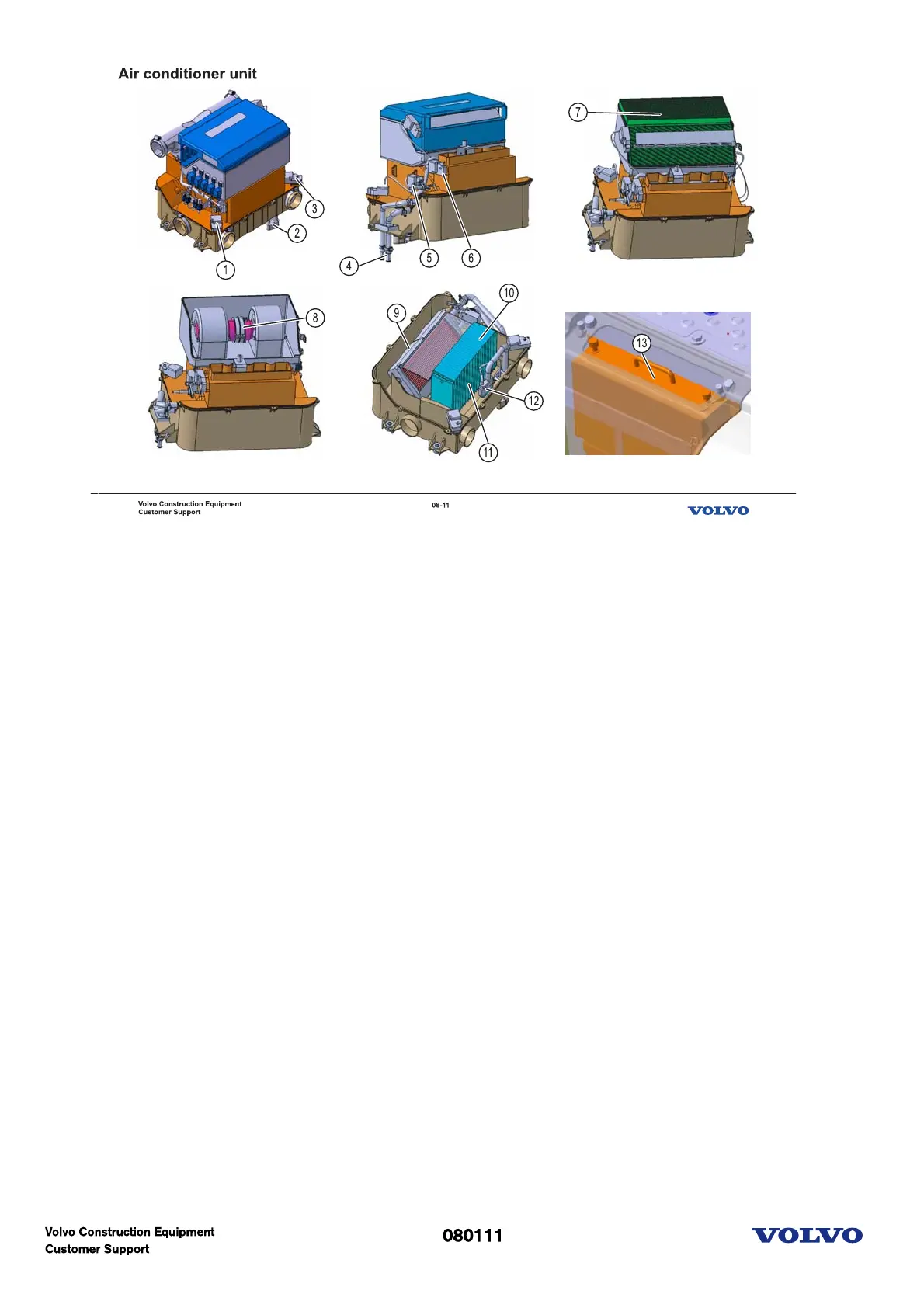

Air conditioner unit
1. Actuator - RH foot
2. Connection point - Refrigerant
3. Actuator - LH foot
4. Connection point - Coolant
5. Actuator - Mix door
6. Actuator - Face door
7. Filter - Main
8. Blower fan
9. Heater core
10. Evaporator
11. Duct temp. sensor
12. Expansion valve
13. Filter - Ambient
