Volvo EC360B - Page 264

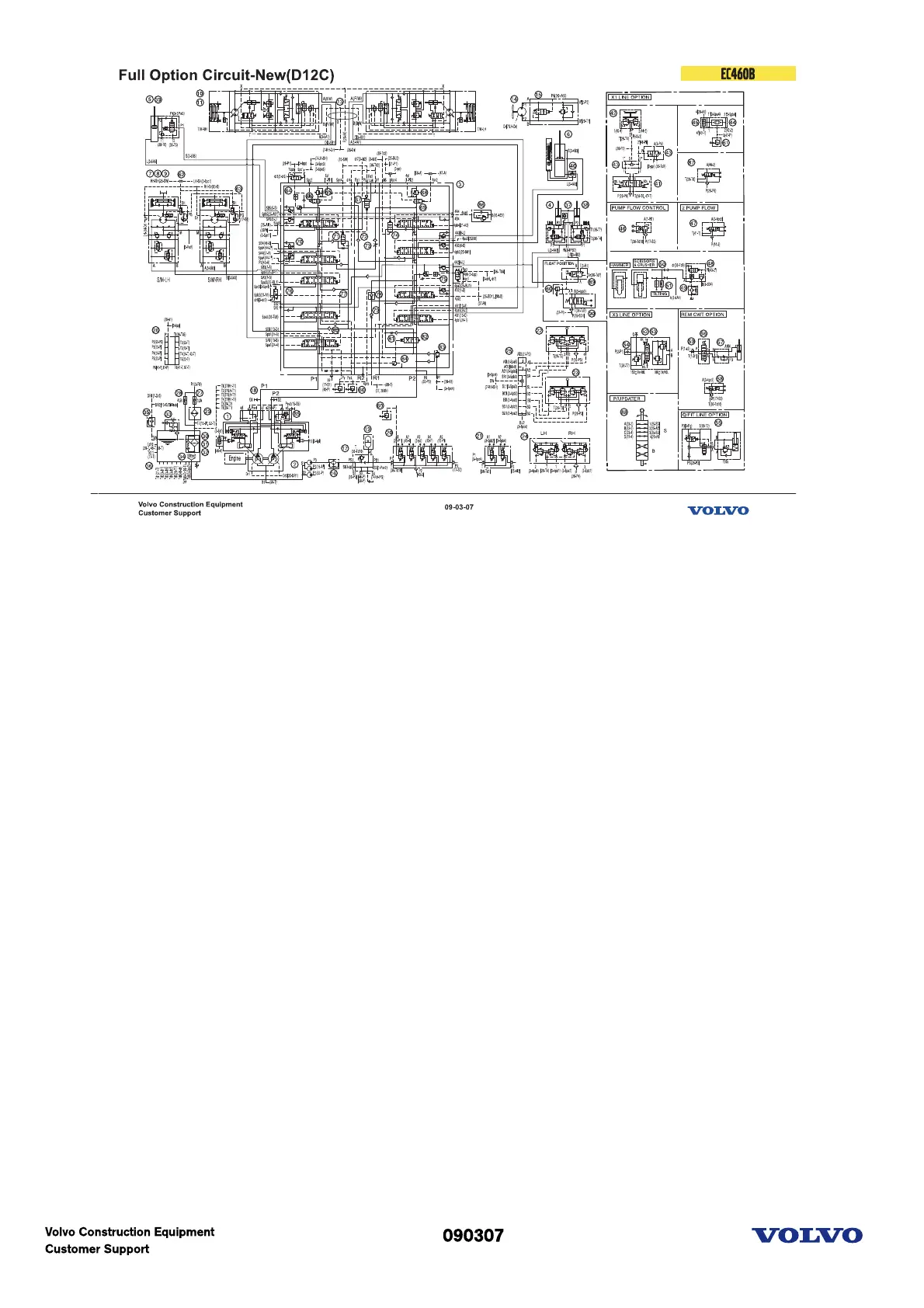

Hydraulic circuit-full option(New)
1. Main pump
2. Servo pump
3. Main control valve
4. Boom cylinder
5. Arm cylinder
6. Bucket cylinder
7. Swing motor
8. Swing gear box
9. Swing drive unit
10. Travel motor
11. Travel gear box
12. Swing ring gear
13. Turning joint
14. Fan motor
15. Shunt valve
16. Pilot filter
17. Accumulator block
18. Quick coupler
19. Accumulator
20. Solenoid valve(1)
21. Solenoid valve(2)
22. RCV LH
23. RCV RH
24. RCV pedal
25. Shuttle block
27. Check valve
28. Check valve
29. Hyd. oil cooler
30. Return filter
31. Bypass valve
32. Bypass strainer
