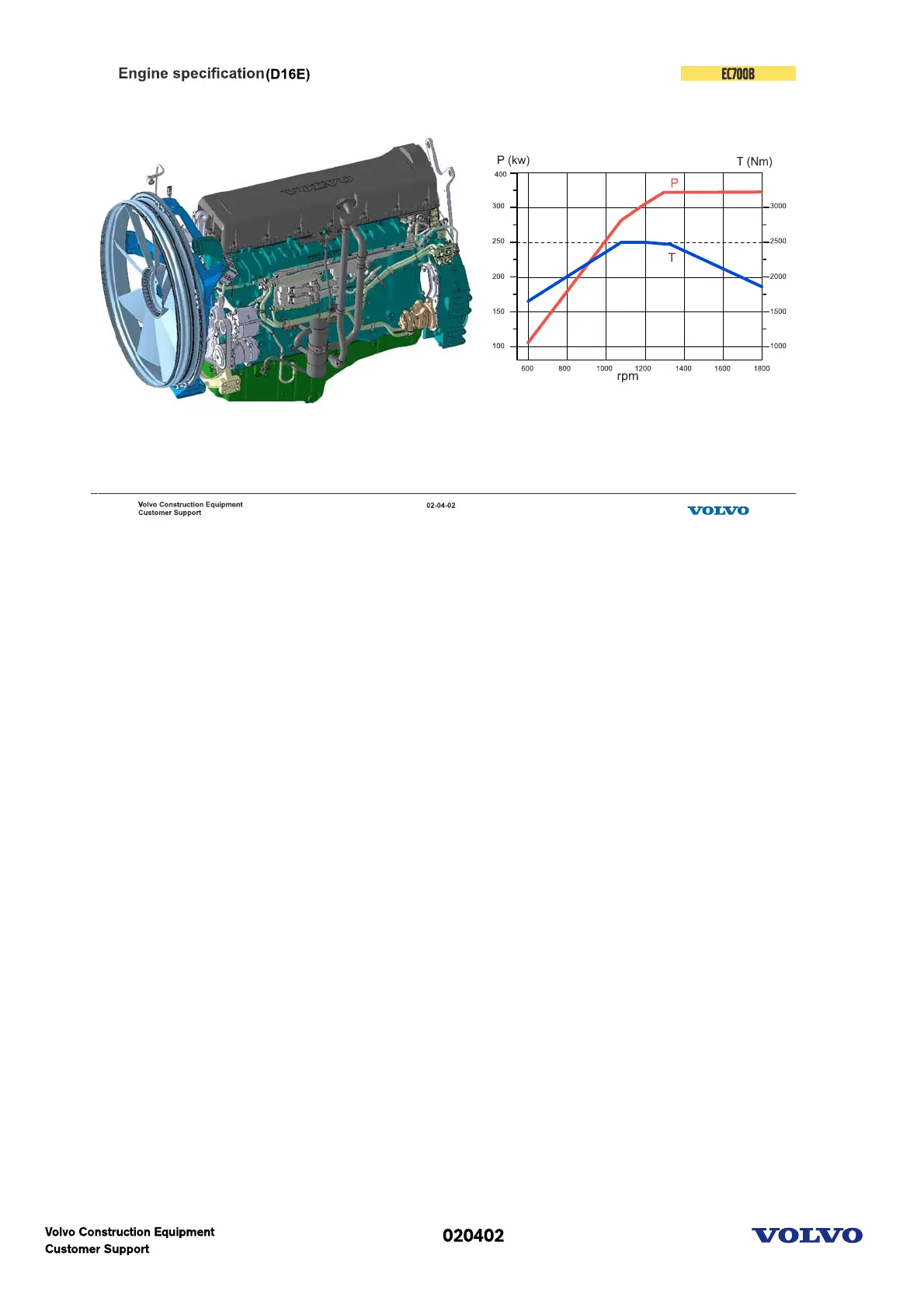

Engine specification
Unit Injector type
--------------------------------------
EC700B : D16E EAE3
Type: 4 cycle, Diesel, Turbo charged, Air to Air After cooled
No.of cylinder : 6 vertical in line type
Bore X Stroke: 144mm X 165mm
Max. Power(fan not in operation)
346kW@1800rpm
Max. Torque(fan not in operation)
2500Nm@1080rpm
Governor type: EMS2
Displacement: 16100cc
Emission : Tier3
