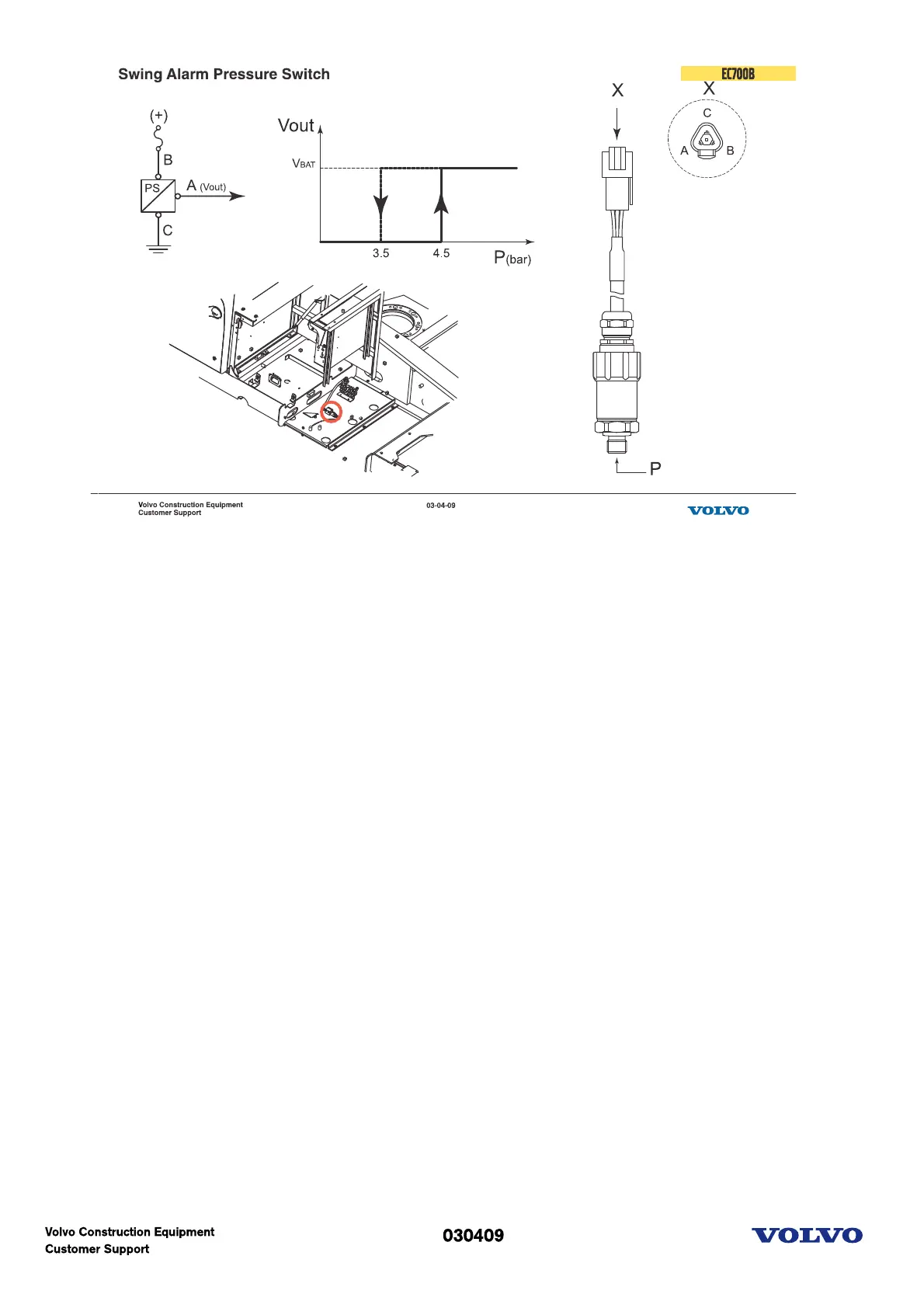

Swing alarm pressure switch
Pin map
A : Voltage output (Max. 1.2 A)
B : Power supply
C : Ground
X : connector view
P : Pressurized port(Max. 100 bar)
VBAT : Battery Voltage
Hydraulic pressure sensor : strain gauge sensor
Electric switch : Transistor type and Normally open
Switching hystereses are On (4.5 bar) and Off (3.5 bar).
The location of this is behind CAB and below electric box.
