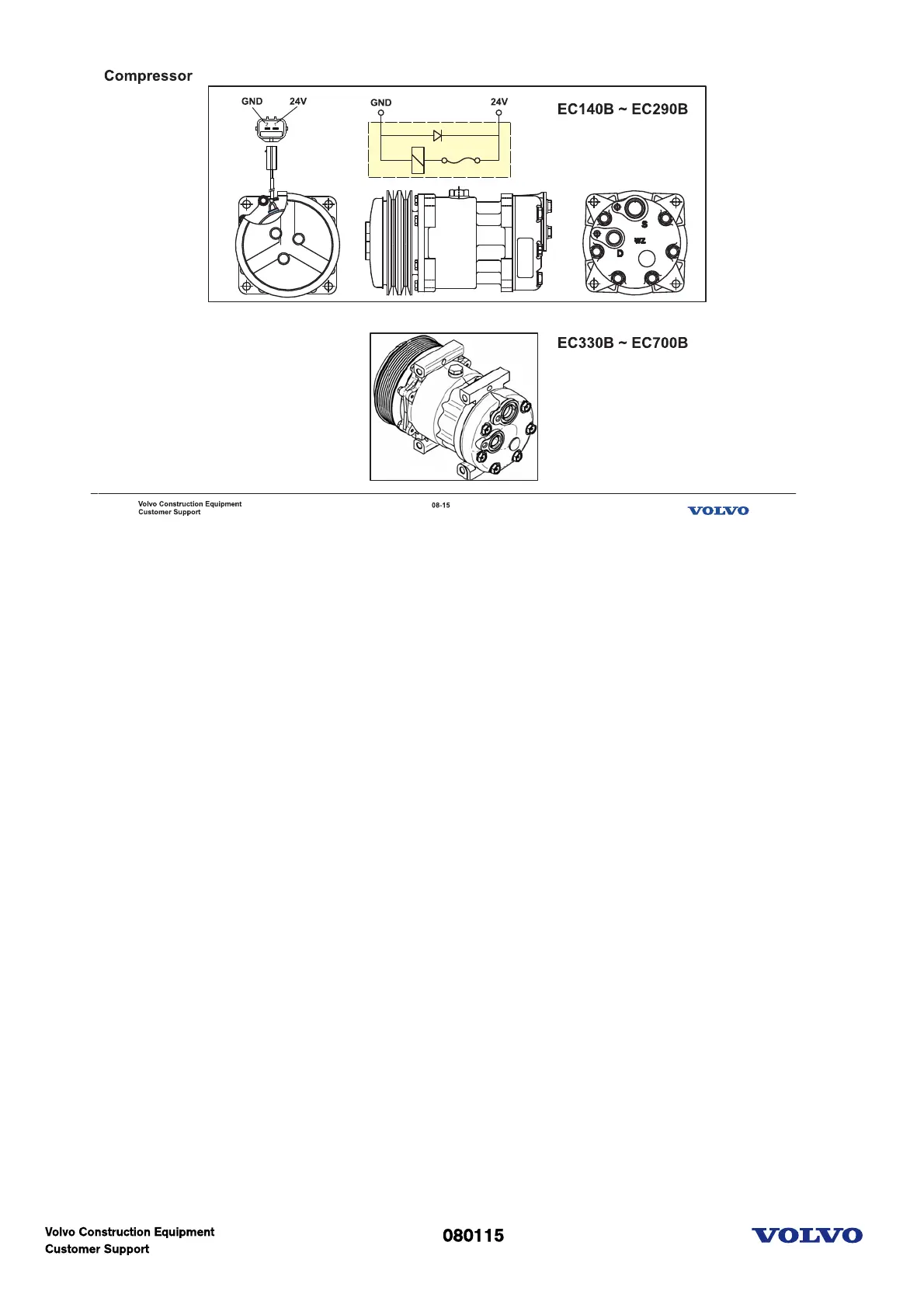

Compressor
S: Suction port(bigger port)
D: Delivery port(high pressure side,smaller port)
New compressor has 2 pin connector.(+,GND)
Old type has one pin connector.(+, body GND)
