Volvo EC460B - Page 231

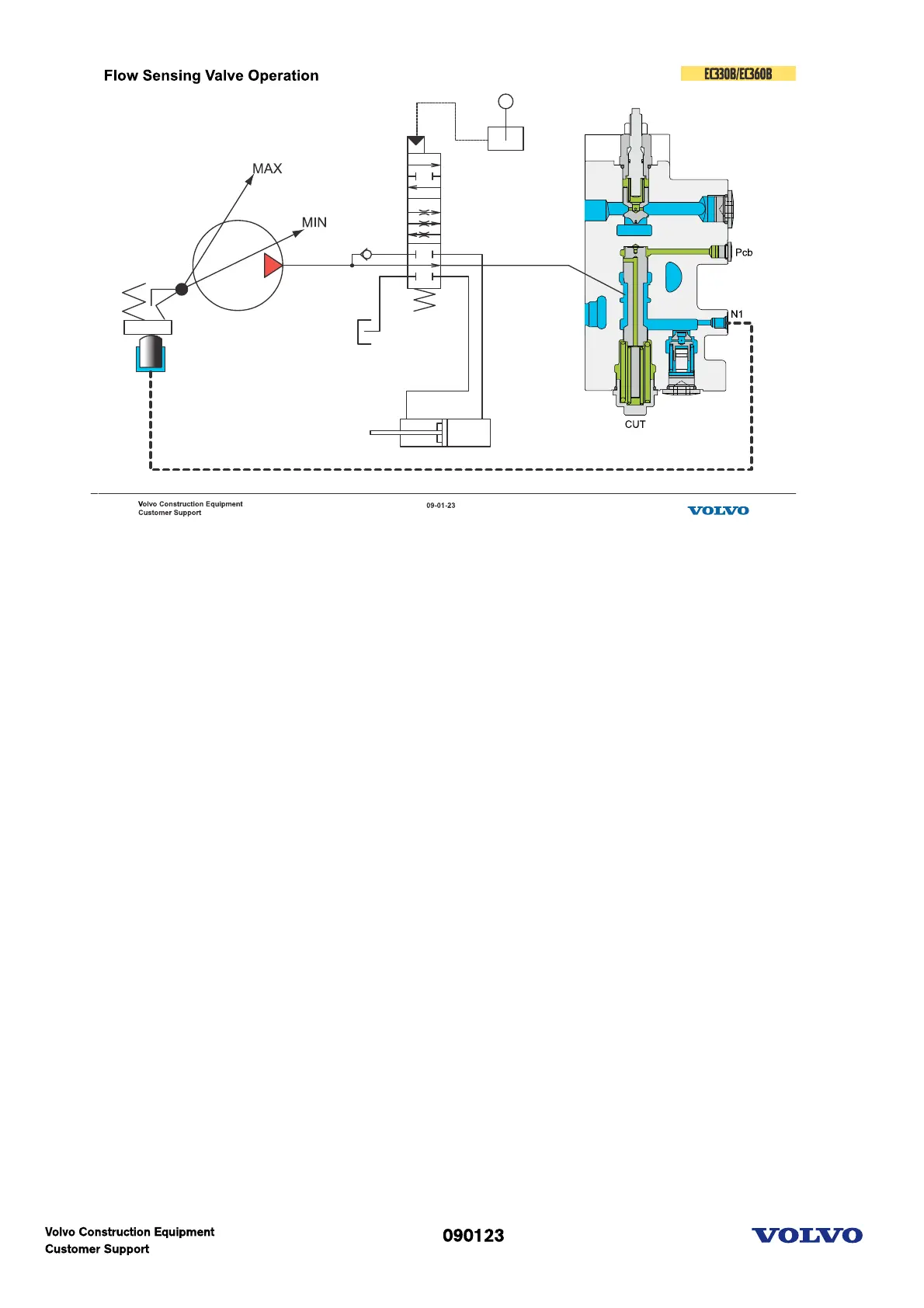

Flow sensing valve operation
The function of flow sensing valve is to control the amount of flow from pump according to the joystick
stroke.
1. Neutral condition( Central passage fully open -> High Pi -> Minimum flow)
2. Half stroke( Central passage partially open -> Medium Pi -> Medium flow)
3. Full stroke( Central passage fully close -> the lowest Pi -> Maximum flow)
