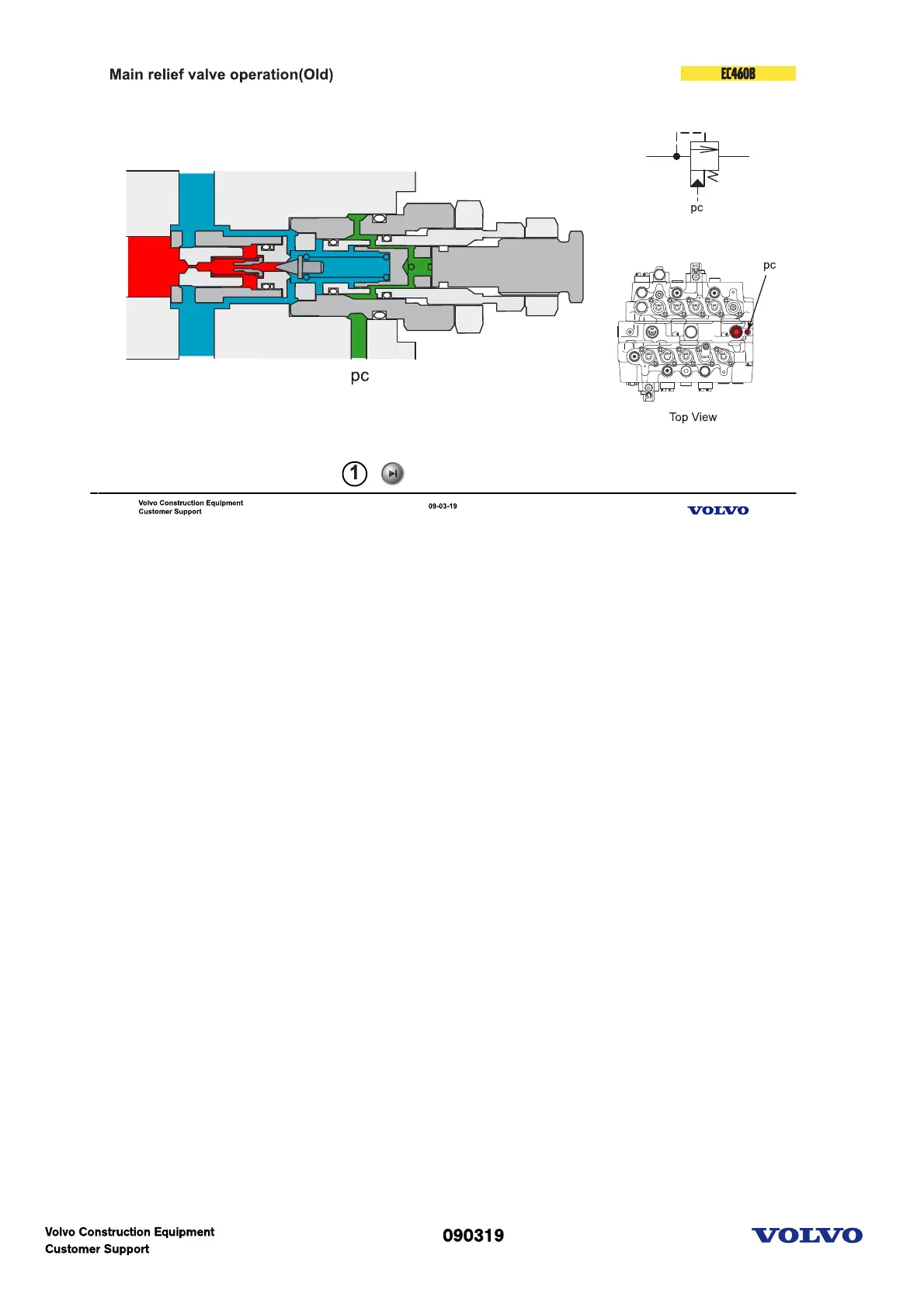

Main relief valve operation-1(Old)
(1) Pump pressure is lower than the set-pressure.
(2) Pump pressure is reached to the set-pressure.
Main relief valve operation-2(Old)
(3) Main poppet open and pump line has tank-connection
(4) Boost signal comes from port pc and push the piston to increase the tension of spring.
