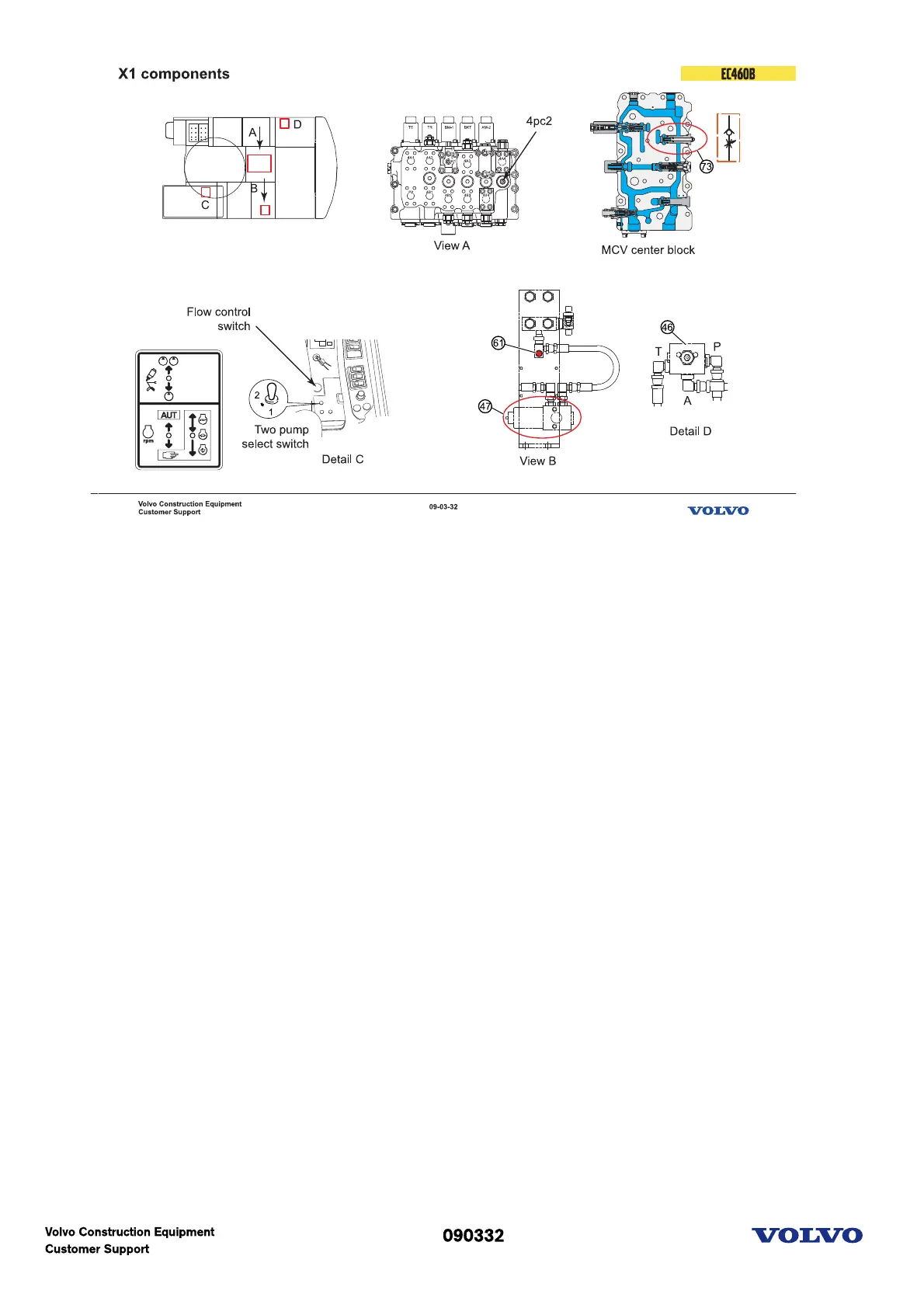

X1 Components
When we select 2-pump flow for option, you have to open the option conflux check valve fully.
Flow control starts the function after hammer pressure switch is on.
46: X1 flow control valve
47: X1 2 Pump select solenoid valve
61: X1 pressure switch
73: Option conflux check valve
