S-Quick fit

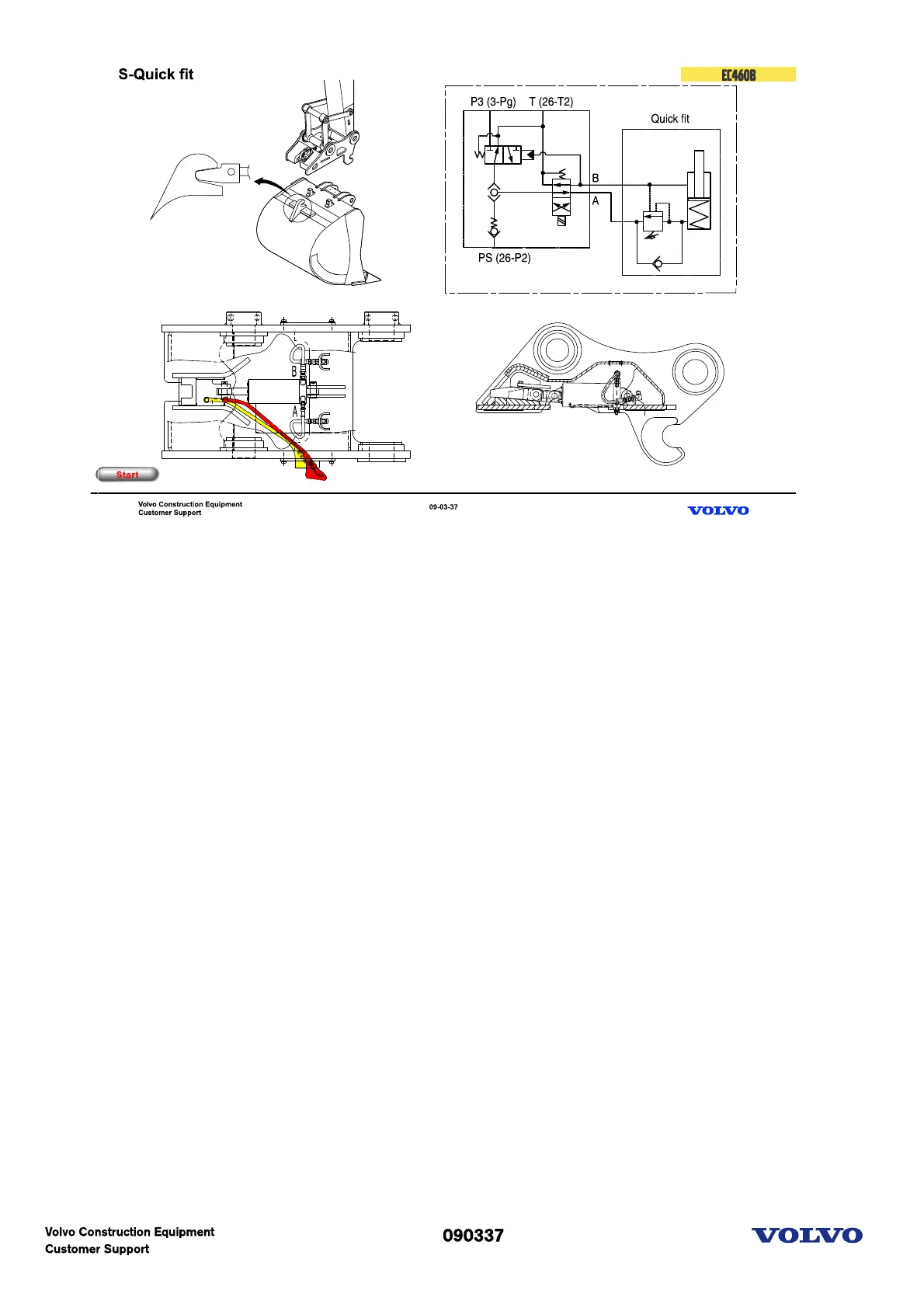

The quick-fit attachment is fitted to the arm end and bucket link. The connection between the quick-fit
and bucket is like figure.
The quick-fit attachment is equipped with a double acting hydraulic cylinder. The quick-fit locking wedge
is fitted to the piston rod. Servo pressure acts on the piston side of the lock cylinder, locking the bucket in
place against the rear hook. This means that the lock wedge adjusts itself and provides gap-free locking.
When lock wedge is released, the servo pressure is transferred to the piston rod side. If necessary, the
release pressure can be increased by loading the bucket cylinder in its end position.
There is a red marker on the left side of the quick-fit attachment, which is folded in when the lock wedge
is in the locked position and folded out when the lock wedge is released.
