External view & Specification
Specification
Max. displacement : 242 x 2 cc/rev
Rated speed : 1800 (CW from shaft end)
Max. flow rate : 435 x 2 lpm
Min. flow rate : 38 x 2 lpm
Max. input torque : 171.1 kgf.m
Mean casing pressure : 1 kgf/cm2

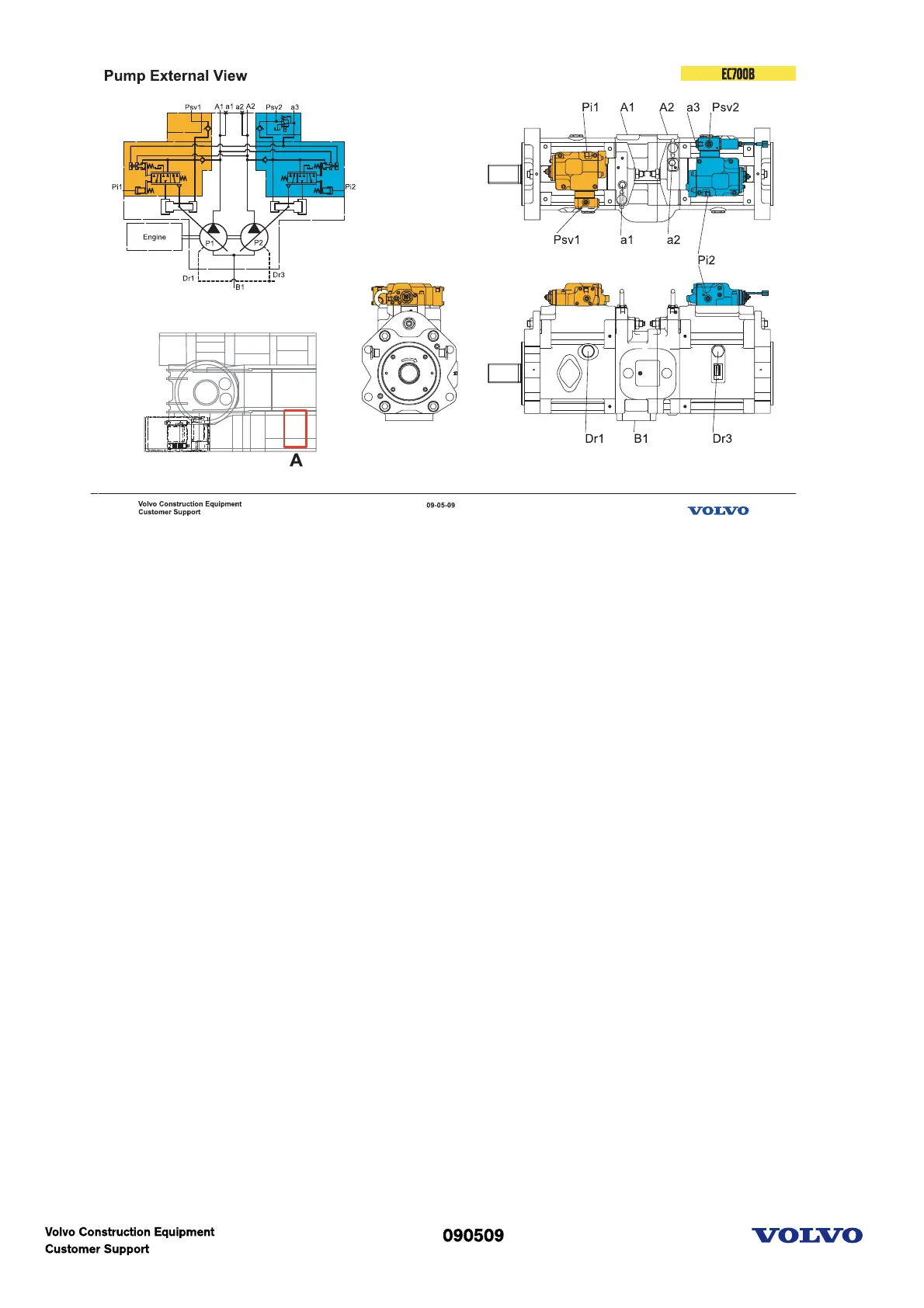

Picture text: A : location of main pump, A1&A2 : outlet
B1 : suction
Dr1,Dr3 : Drain
pi1 : pilot line for flow control(P1 pump)
pi2 : pilot line for flow control(P2 pump)
a1 : pluged, a2 : connected to removable counterweight
a3 : check port of power-shift 2nd pressure
Psv1,Psv2 : pilot servo pressure supply line
