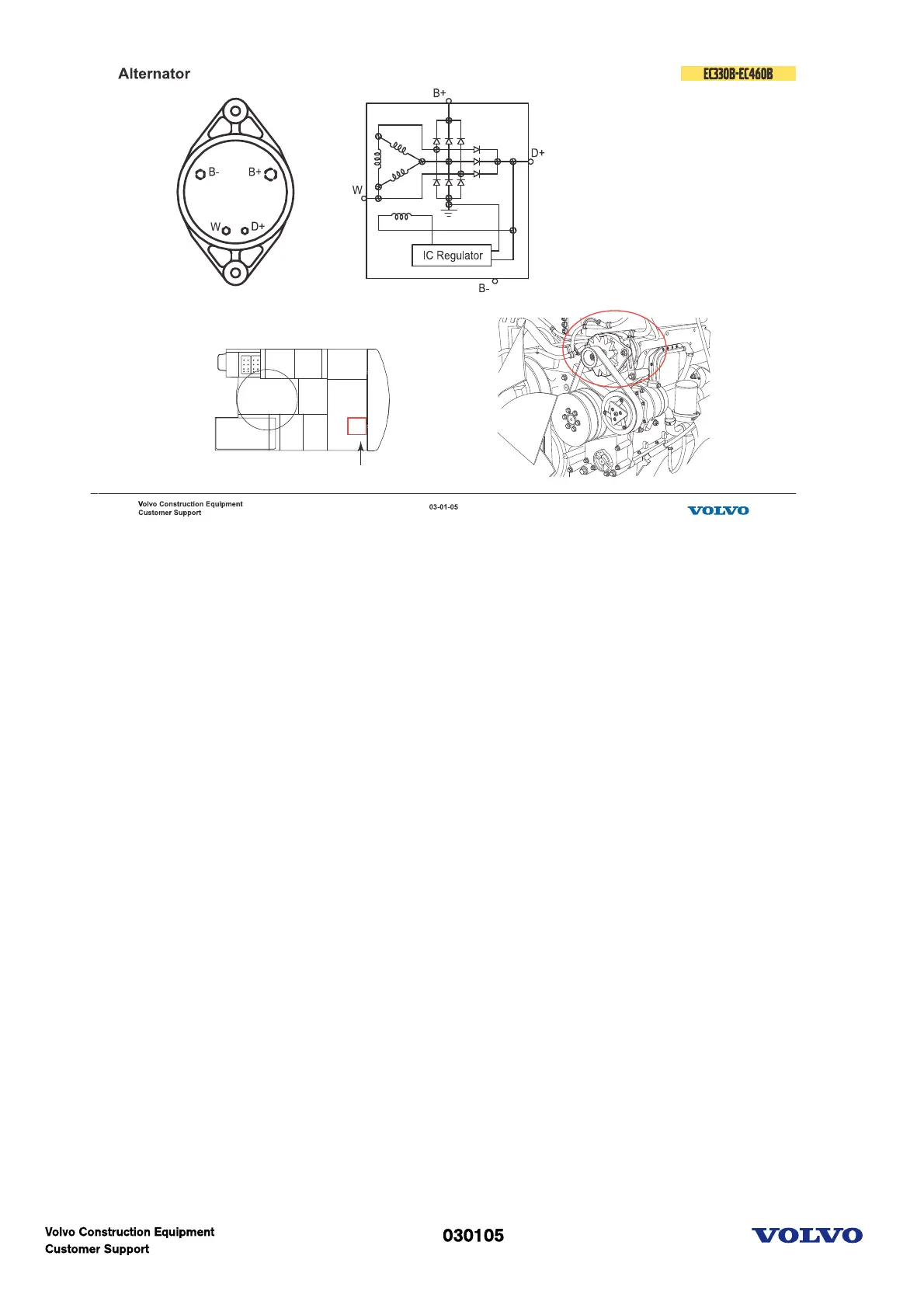

Alternator
The alternator generates current to activate all the electrical systems, and the extra current charges the
battery.
The current from D+ flows to the safety start relay to cut off the operation of starter motor and prevent
accidentally re-engaging the starter.
After the engine starting, the battery charge warning lamp is turned off because the signal from "D+"
remove voltage difference at lamp.
