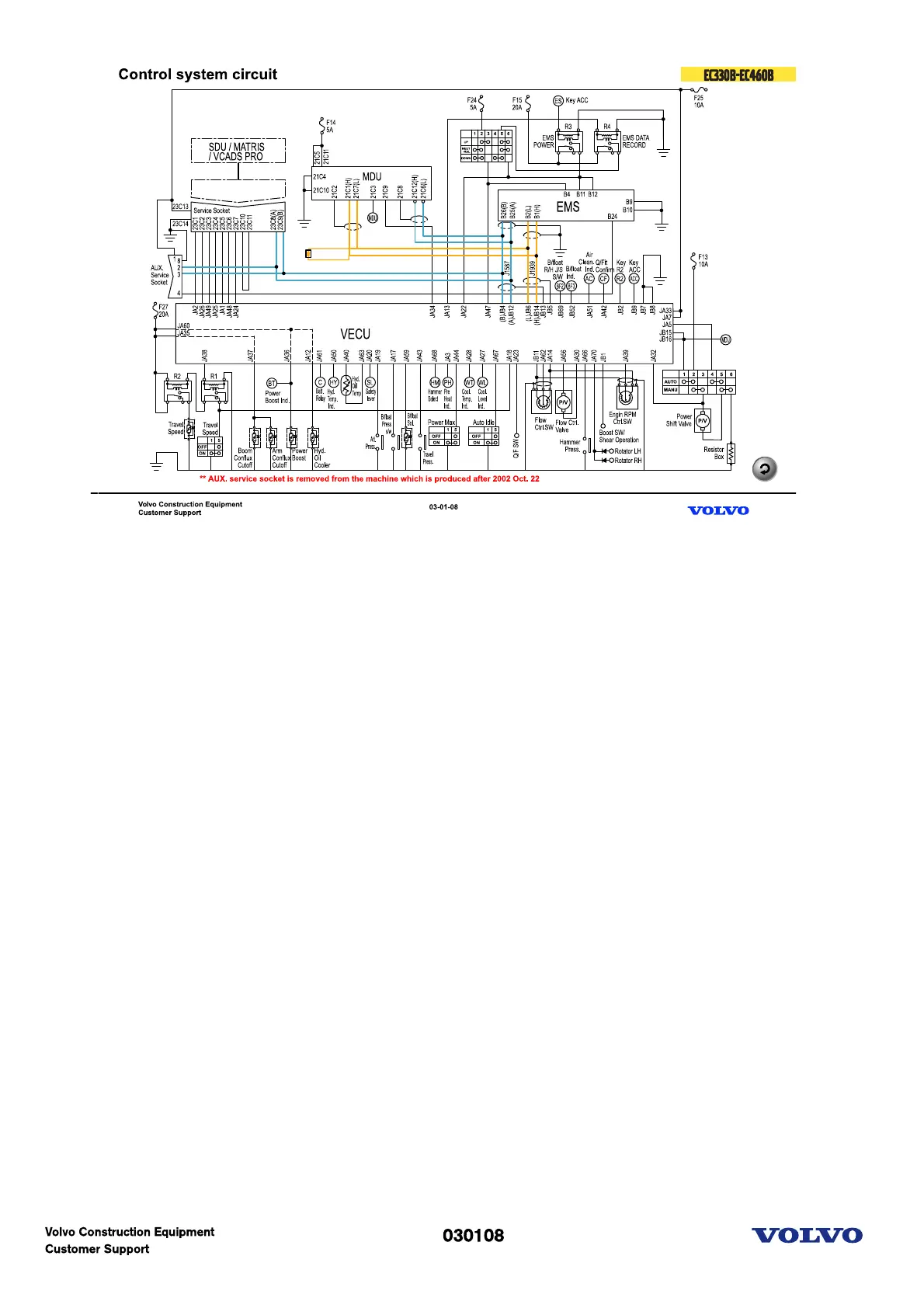

Control system circuit(Animation)
This is brief circuit diagram to explain the electronic control system.
First of all, think about operating power and ground of each ECU.
Then move on to each function. After understanding each function and input-output of VECU, Compare
those functions with this circuit diagram.
When you pushed line in the circuit, the color of line will be changed.
