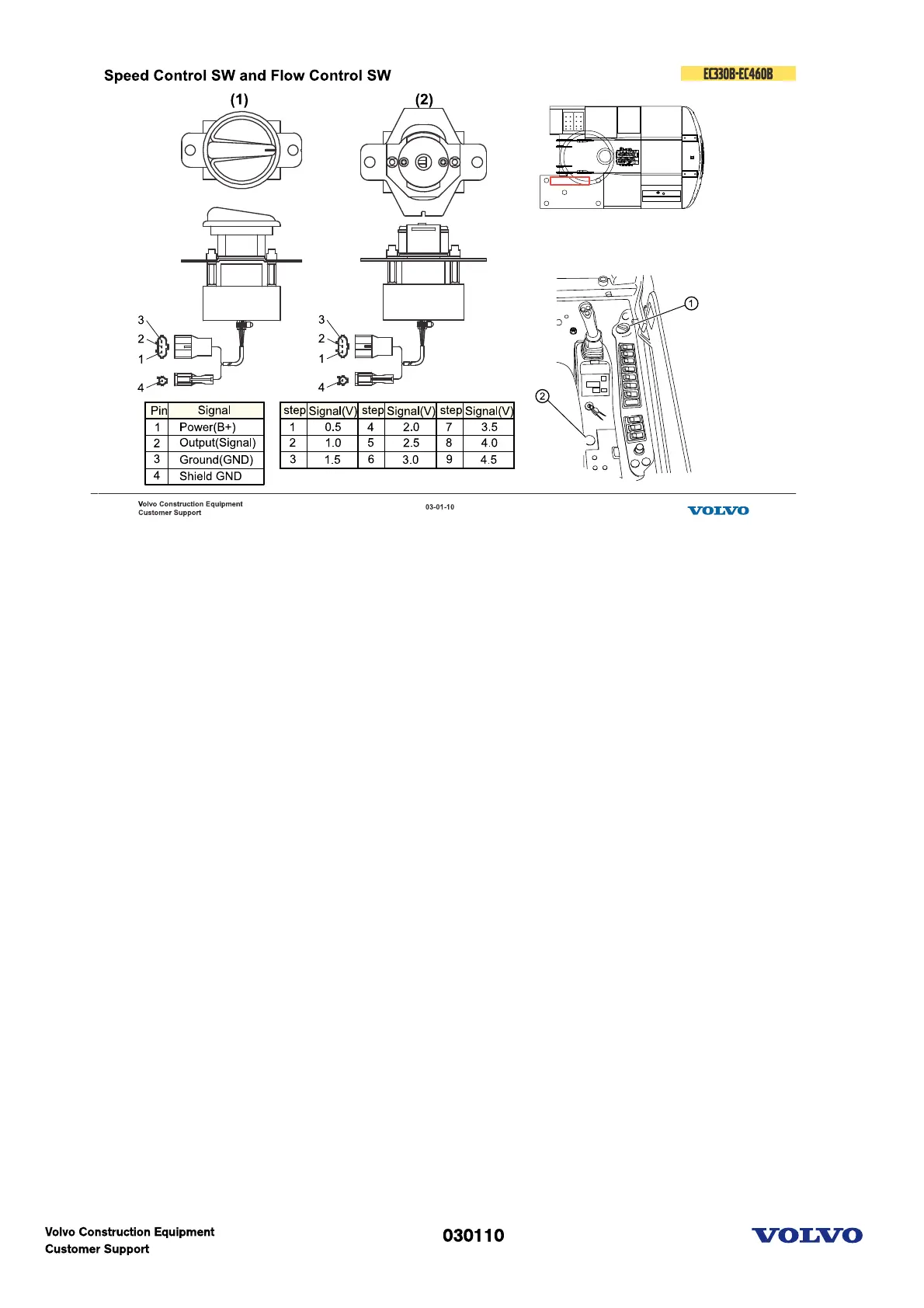

Speed control switch and Flow control switch
1. Speed control switch
2. Flow control switch
Two switches are almost same components.
Only different thing is that the flow control switch needs screw driver to adjust the step.
Input voltage is 24v and output voltage is 0.5~4.5V.
They have a shield ground to prevent noise at signal line.
