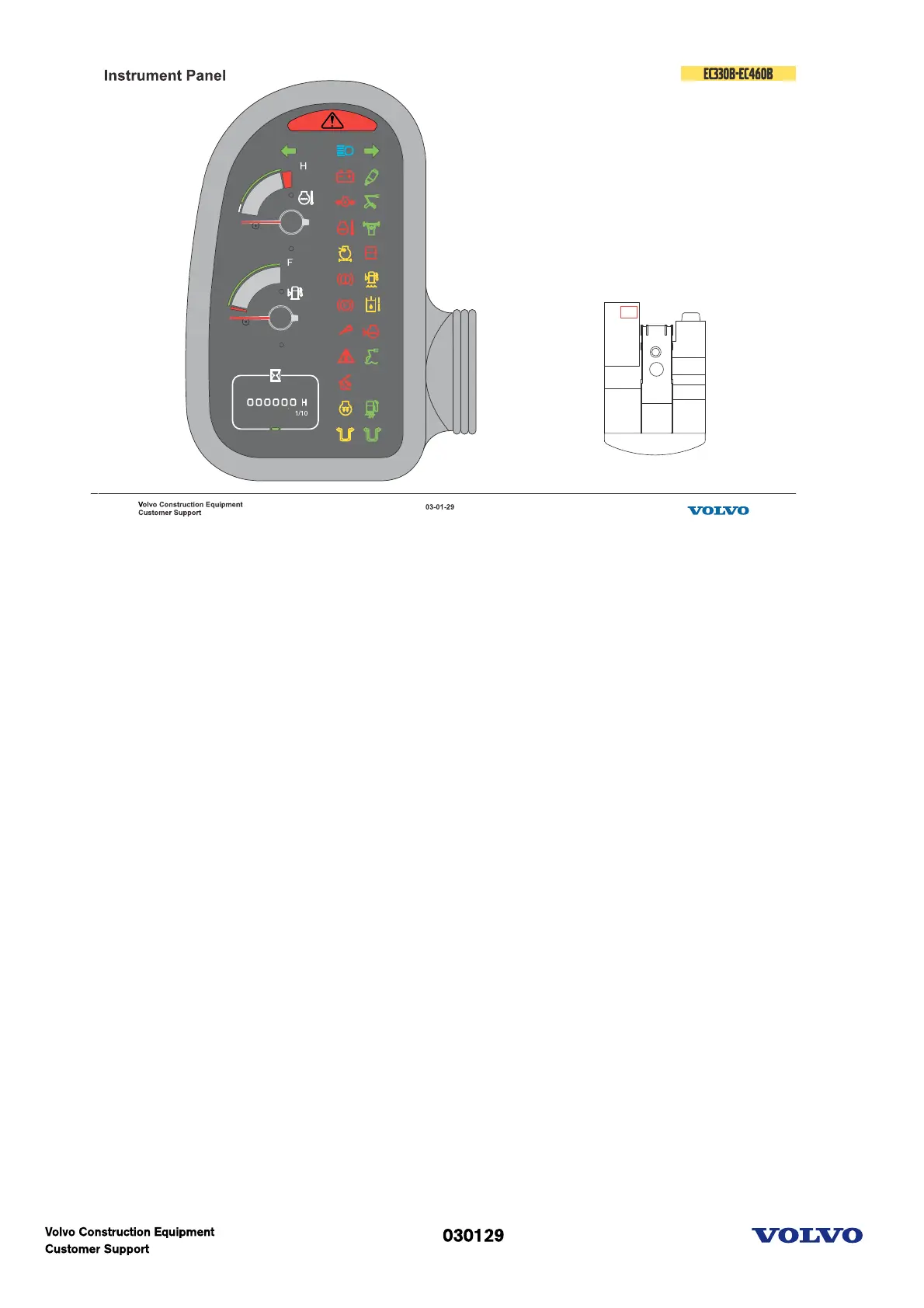

Instrument panel
The instrument panel shows the information received from the sensors and switches of the machine to
alert the operator of any abnormality.
The instrument is adjustable for operator viewing angle and is illuminated for night work.
All light bulbs should be checked daily and replaced if burnt-out because the indicators alert the operator
of a failure in the machine.
The panel contains a coolant temperature gauge, fuel gauge, hour meter and alert indicators to show
machine conditions.
The instrument panel utilizes a plug-in printed circuit board (PCB) to facilitate replacement and
troubleshooting. If a failure is suspected always check the plug-in connection.
This is common parts with wheel excavator.
