Volvo IPS650 - Auxiliary alternator, 12 V or 24 V, twin installations

Auxiliary alternator, 12 V or 24 V, twin
installations
Example
•
Keep 12 V and 24 V systems separate.
•
Connect the sensor cables to the correct voltage
group, 12 V or 24 V.
NOTICE! Large power consumers must have a sepa-
rate
switch that is connected directly to the service bat-
tery positive terminal (+).

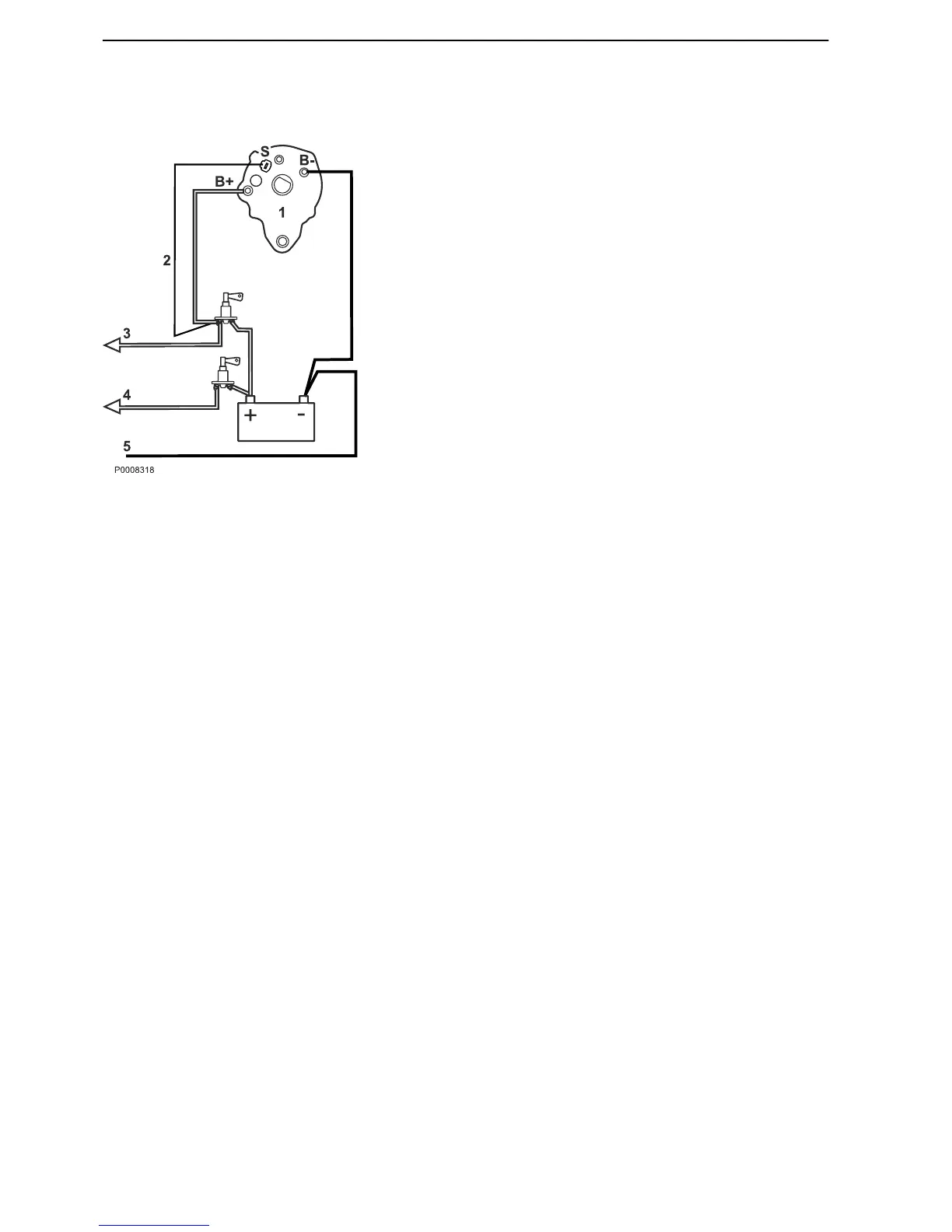

1 Alternator
2
Sensor cable
3 Accessories 12 V/24 V
4 Capstans etc. (major power consumers)
5 Connect to start array, negative (-)
