Placement and Mounting of Hull
Plug, Twin Installation

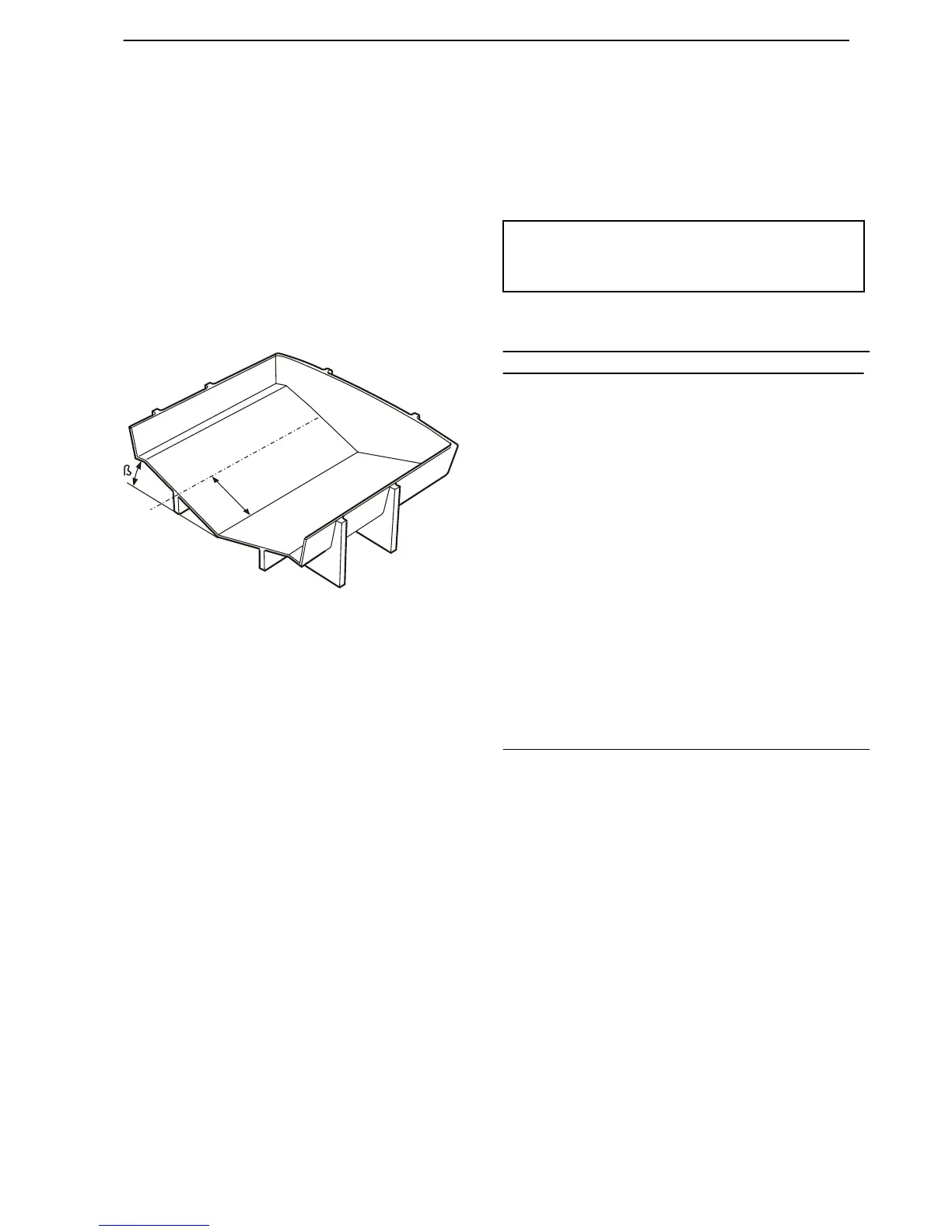

NOTICE! The illustration shows a hull mold.
Mark out a straight line parallel to the keel at distance
(A) , which is governed by hull bottom angle (α).
After installation, the distance between the upper gear
case center must be at least 1200 mm (47.2").
At
a distance of 1400 mm (55.1"), the following applies:
Distance (A) measured from the keel to the
plug centerline at varying bottom angles.
Bottom angle Distance
(β) (A) mm (in.)
5°
6°
7°
8°
9°
10°
11°
12°
13°
14°
15°
16°
17°
18°
19°
20°
21°
22°
23°
24°
739 (29.1)
747 (29.4)
756 (29.8)
765 (30.1)
774 (30.5)
784 (30.9)
794 (31.3)
804 (31.6)
814 (32.1)
825 (32.5)
836 (32.9)
847 (33.4)
859 (33.8)
871 (34.3)
883 (34.8)
896 (35.3)
909 (35.8)
923 (36.3)
937 (36.9)
951 (37.4)
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 63
