09 Maintenance and service
Lamps
09
``
339

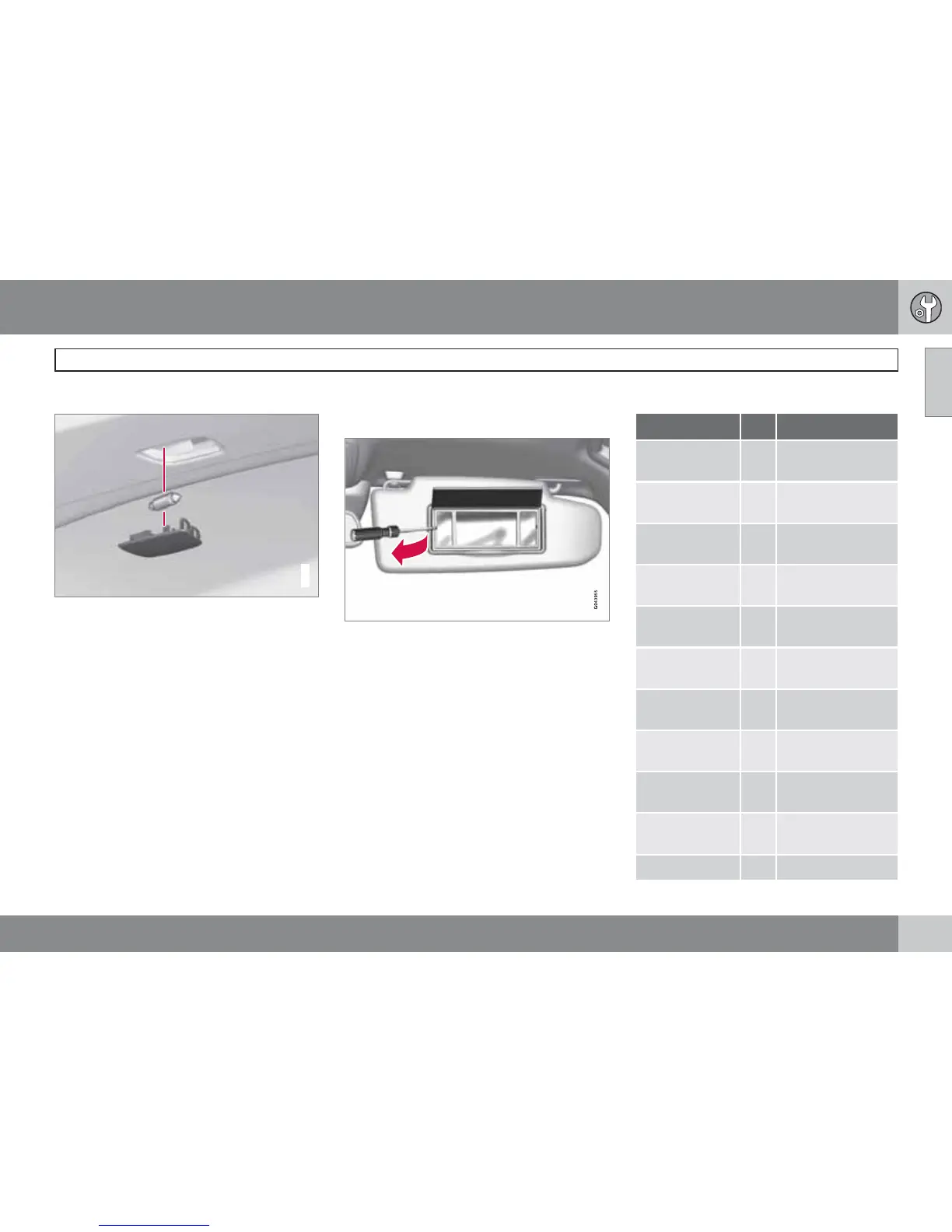

Lighting, cargo area
G031942
1. Insert a screwdriver and gently prize so
that the lamp housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press
back the lamp housing.
Vanity mirror lighting
Removal of lamp lens
1. Insert a screwdriver under the lamp lens
and gently prize up the lug on the edge.
2. Carefully detach and lift aside the lamp
lens.
3. Use needle-nose pliers to pull the bulb
straight out to the side and replace with a
new one. Note! - Do not pinch hard with the
pliers. Otherwise the lamp lens could then
be crushed.
Attaching the lamp lens
1. Refit the lamp lens.
2. Press it into place.
Specification, bulbs
Lighting
W
A
Type
Dipped beam,
halogen
55 H7 LL
Main beam,
Halogen
65 H9
Extra main
beam, ABL
65 H9
Front direction
indicators
21 HY21W
Courtesy light-
ing front
3 T10 Socket
W2.1x9.5d
Glovebox light-
ing
5 Socket SV8.5
Length 43 mm
Vanity mirror
lighting
1.2 T5 Socket
W2x4.6d
Cargo area
lighting
5 Socket SV8.5
Length 43 mm
Number plate
lighting
5 C5W LL
Direction indi-
cators, rear
21 PY21W SV
- - -
