10 Specifications
Symbols in the display
10
404
* Option/accessory, for more information, see Introduction.
General
There are a variety of different symbols in the
display in the car. The symbols are divided into
warning, indicator and information symbols.
Shown below are the most common symbols
with their meanings and a reference to where
in the manual further information can be found.
For more information on symbols and text
messages, see pages 72, 74 and 200.
- Red warning symbol, illuminates when
a fault has been indicated which could affect
the safety and/or driveability of the car. At the
same time an explanatory text is displayed in
the information display.
- Yellow information symbol, illuminates
in combination with text in the information dis-
play, when a deviation in any of the car's sys-
tems has occurred. The yellow symbol infor-
mation can also illuminate in combination with
other symbols.

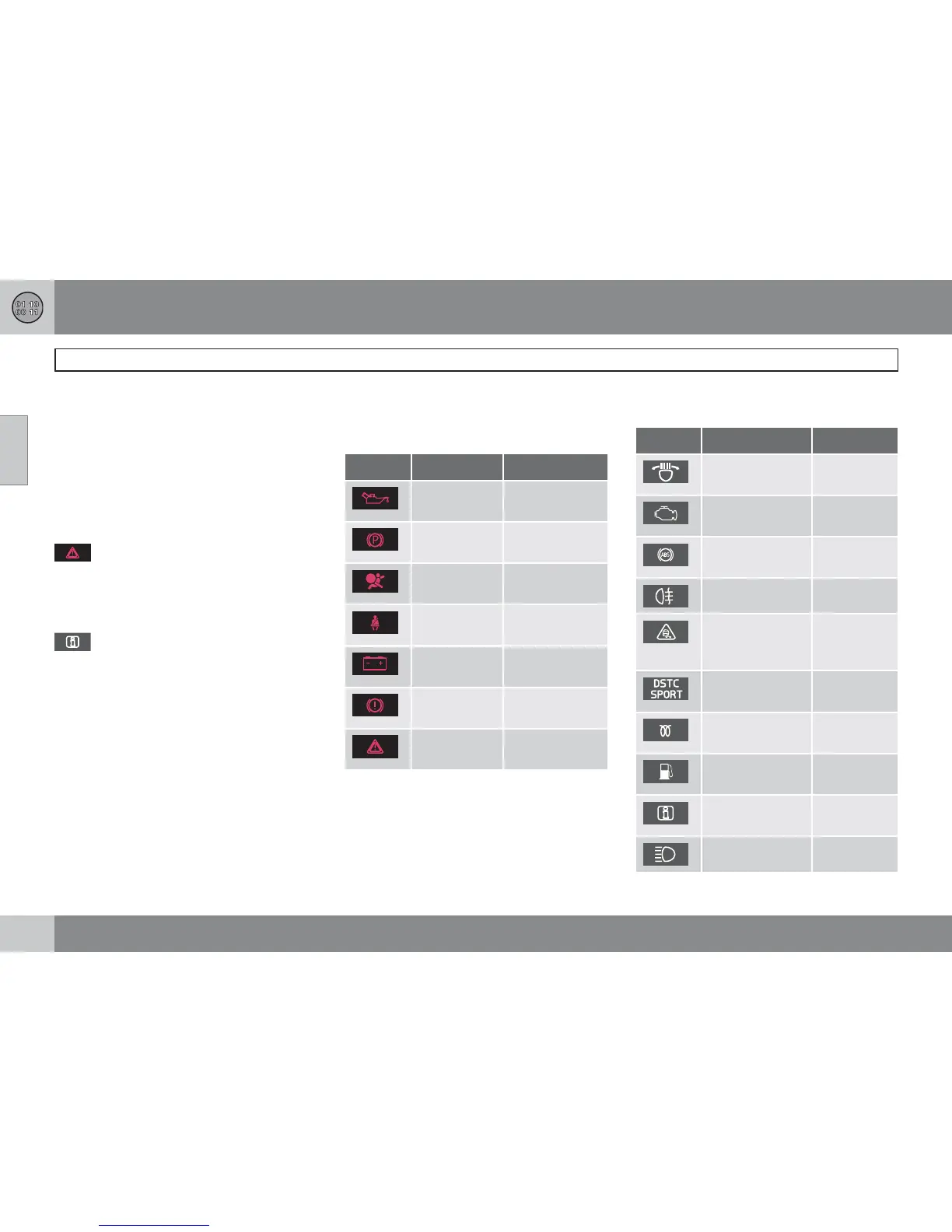

Symbols in the display
Indicator and warning symbols in the
combined instrument panel
Symbol Meaning Page
Low oil pres-
sure
74
Parking
brake
74, 137, 139
Airbags -
SRS
19, 74
Seatbelt
reminder
16, 74
Alternator
not charging
74
Fault in the
brake system
74, 136
Warning,
safety mode
19, 30, 74, 75,
125
Indicator and information symbols in the
combined instrument panel
Symbol Meaning Page
Fault in the ABL
system*
72, 90
Emissions sys-
tem
72
Fault in the ABS
system
72, 136
Rear fog lamp on 72, 91
Stability system,
DSTC, Trailer
stability assist
72, 147, 303
Stability system,
sport mode
72, 147
Engine pre-
heater (diesel)
72
Low level in fuel
tank
72, 221
Information,
read display text
72
Main beam on 72, 90
