Vonets VAP11G-300 User Manual

VONETS
10
3) Set the Internet parameters, for WAN settings, there are two common connection
methods: DHCP and PPPOE;
 The default setting is DHCP;

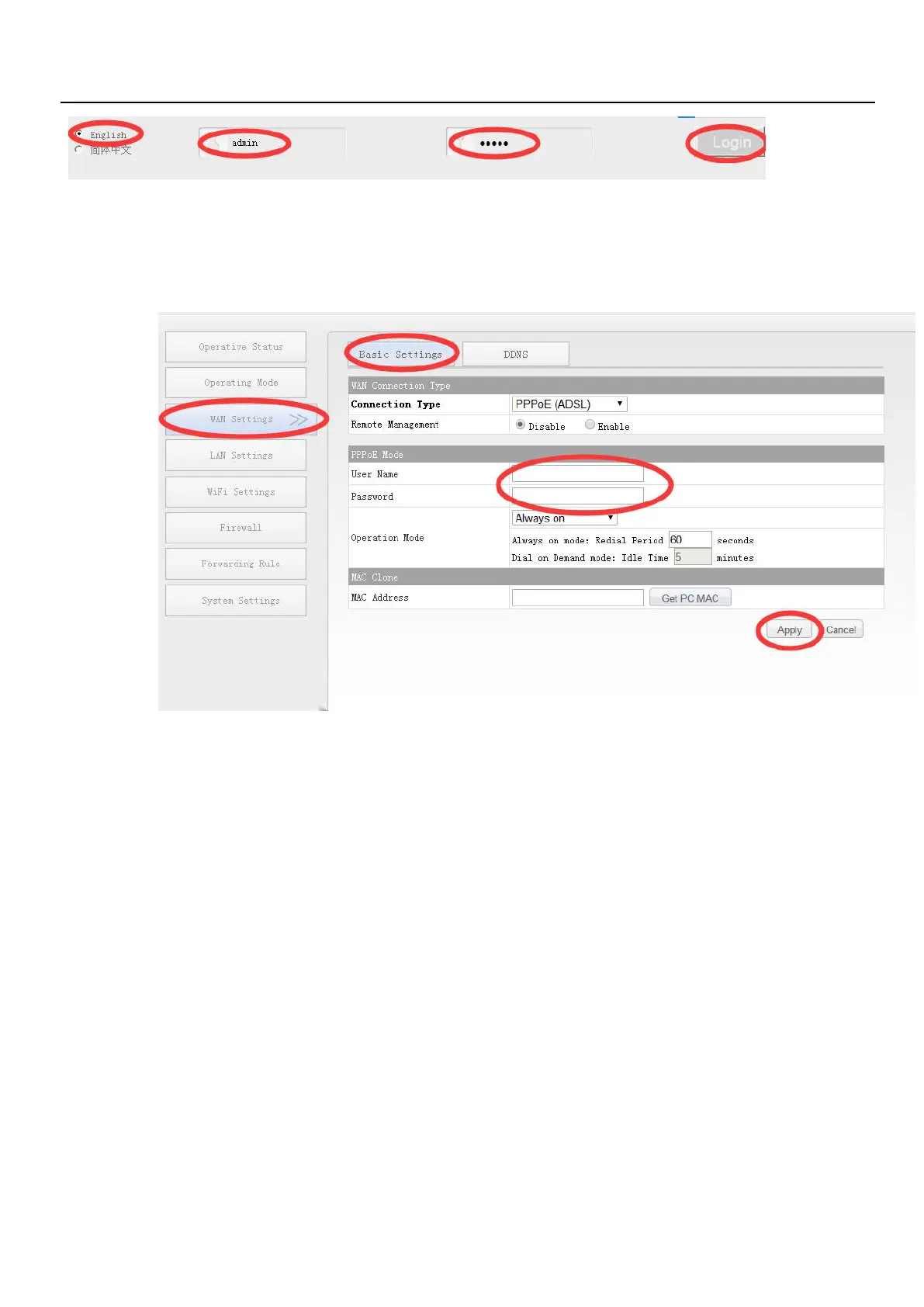

 If it is PPPOE connection, please refer the drawing below, enter the account and
password provided by ISP;
4) WiFi Settings
 In “Basic Settings”, user can disable WiFi Network, revise WiFi Repeater (SSID) and
change WiFi channel;
 In “WiFi Security”, user can revise WiFi security mode and pass phrase;

Vonets VAP11G-300 Specifications

General

Wi-Fi Standard	802.11b/g/n
Frequency	2.4GHz
Max Data Rate	300Mbps
Weight	30g
Storage Temperature	-20°C to 70°C
Antenna	Built-in
Operating Mode	AP, Repeater
Ethernet Port	10/100Mbps
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Port	RJ45
