Vonets VAP11G-300 User Manual

VONETS
11
5) The function interchange of WAN and LAN (This operation is just fit for VAR11N-300, VAR5G)
 In default setting, the WAN/LAN attribute is the same as the mark on the shell;

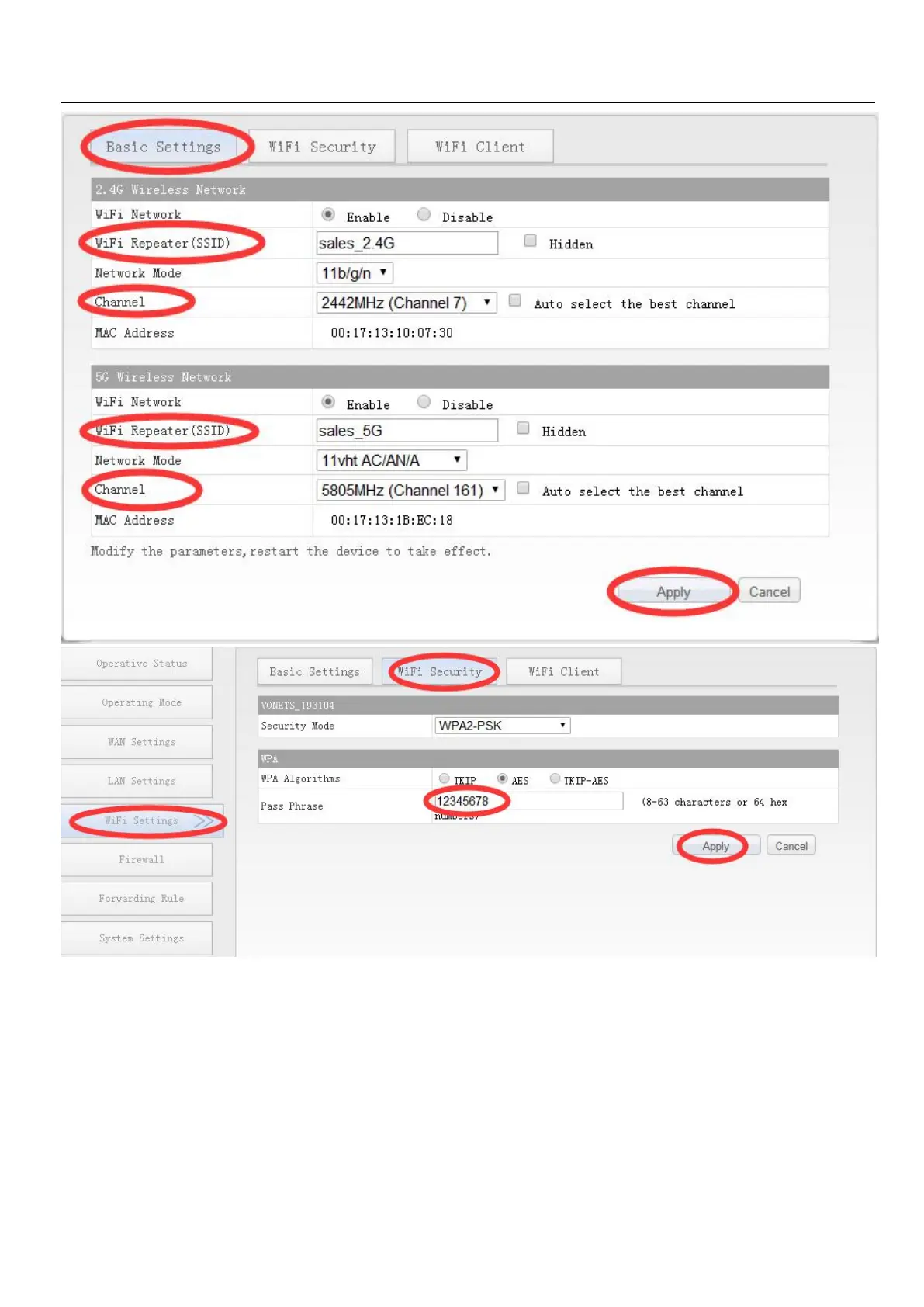

 Choose “Operating Mode” to switch LAN and WAN function, please see the drawing
below:

Vonets VAP11G-300 Specifications

General

Wi-Fi Standard	802.11b/g/n
Frequency	2.4GHz
Max Data Rate	300Mbps
Weight	30g
Storage Temperature	-20°C to 70°C
Antenna	Built-in
Operating Mode	AP, Repeater
Ethernet Port	10/100Mbps
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Port	RJ45
