Vonets VAP11G-300 User Manual

VONETS
6

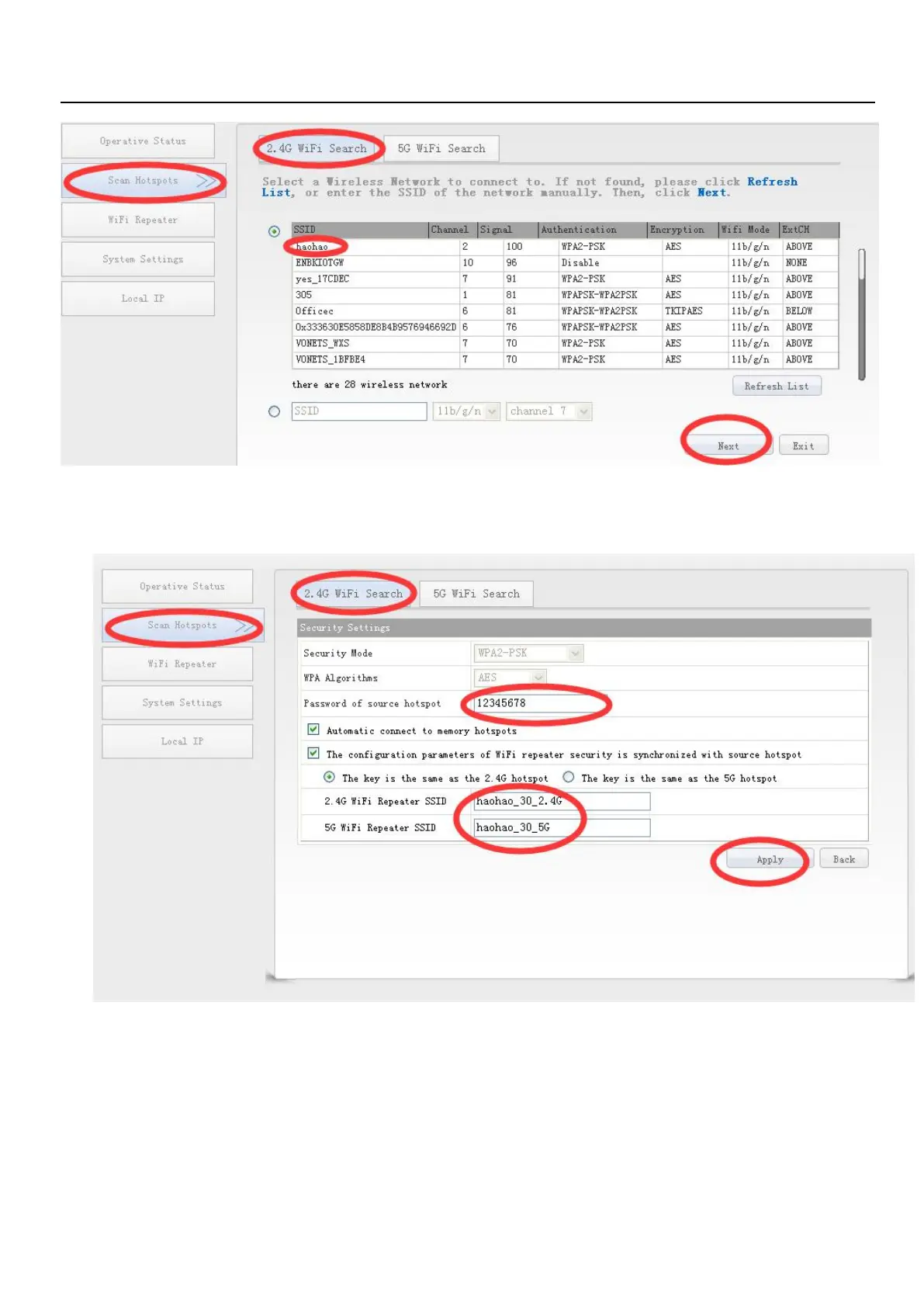

4) Set up the source WiFi hot spot password, extended WiFi hot spot SSID (the default
configuration: The password of extended WiFi hot spot is the same as the source WiFi hot spot
password)
5) Configure WiFi Transmit power (This is just fit for VAP11G-500, VAP11G-1000, VAP11G-2000)
 The default is Normal WiFi power, at this point the point to point transmission distance
can not reach the farthest remote;
 If you want to reach the farthest transmission distance, this product must be paired to
use, the device is configured to high power mode, please the drawing below:

Vonets VAP11G-300 Specifications

General

Wi-Fi Standard	802.11b/g/n
Frequency	2.4GHz
Max Data Rate	300Mbps
Weight	30g
Storage Temperature	-20°C to 70°C
Antenna	Built-in
Operating Mode	AP, Repeater
Ethernet Port	10/100Mbps
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Port	RJ45
