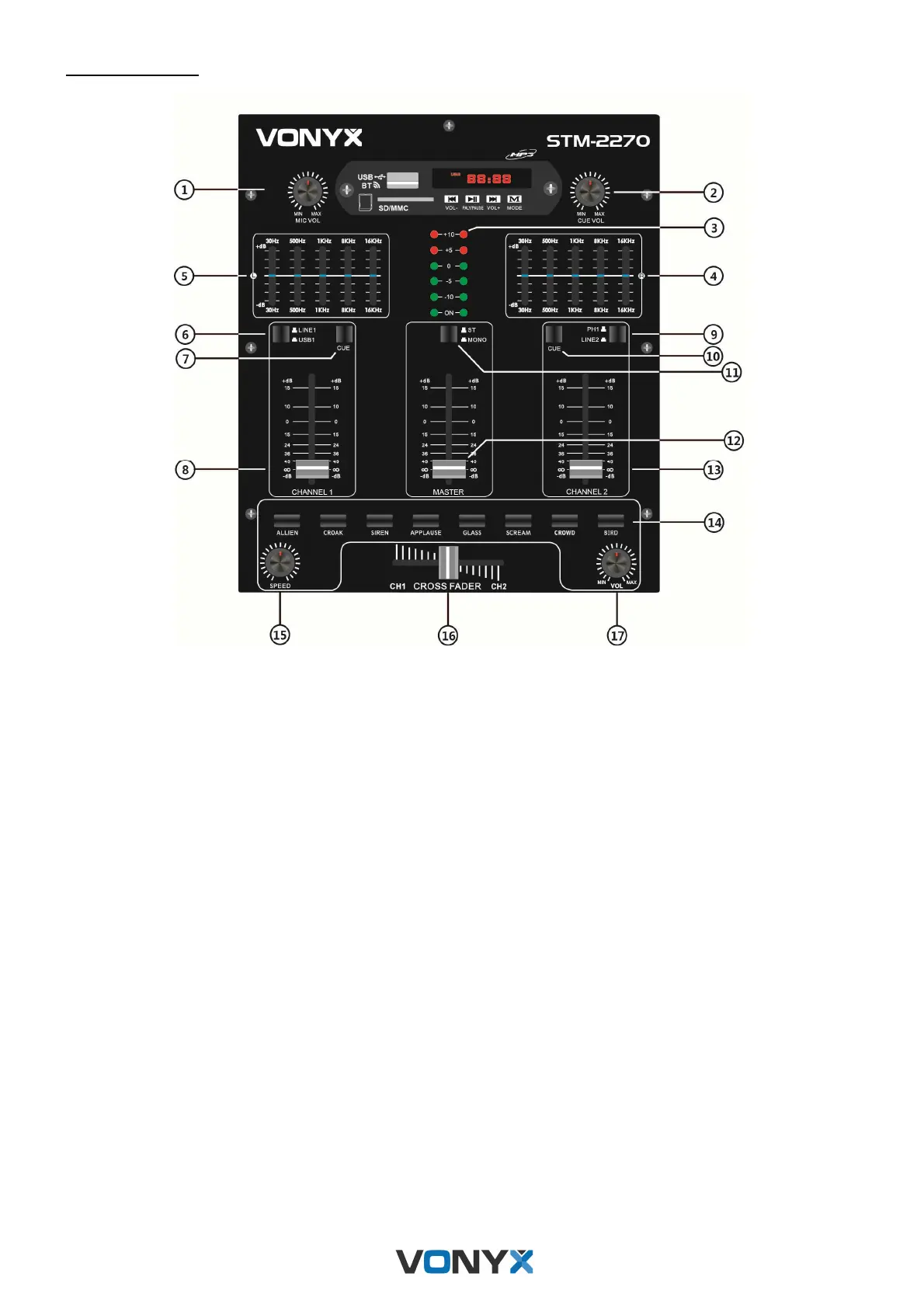

FRONT PANEL
1. MIC VOLUME Volume control of the microphone
2. CUE VOLUME The CUE Volume rotary knob adjusts your headphone monitor output volume
3. OUTPUT METER VU-meter with LED as indicators for the strength of the output signal.
4. EQ Right channel 5-band EQ
5. EQ Left channel 5-band EQ
6. LINE1/USB INPUT SELECTOR
7. CHANNEL 1 CUE SELECTOR SWITCH
The button allows you to choose which channel you wish to monitor in your headphones by pressing the
buttons down.
8. CHANNEL 1 VOLUME FADER
Channel fader will allow you to adjust the volume for that particular channel selected.
9. PHONO1/LINE 2 INPUT SELECTOR
10. CHANNEL 2 CUE SELECTOR SWITCH
The button allows you to choose which channel you wish to monitor in your headphones by pressing the
buttons down.
11. STEREO/MONO Switch
12. MASTER VOLUME FADER This fader will allow you to adjust the master volume of the unit
13. CHANNEL 2 VOLUME FADER Channel fader will allow you to adjust the volume for that particular
Channel selected
14. SOUND EFFECTS SECTION
Eight different sound effects ( ALIEN, APPLAUSE, SIREN, CROAK, GLASS， SCREAM， CROWD &
BIRD) may be added to your mixer by pressing the SOUND EFFECTS CONTROL BUTTONS. The volume
of the effects can be adjusted using the rotary VOLUME located the right side under the BIRD effects
buttons.
15. SPEED Sound effect speed adjustment
16. CROSS-FADER Slide for step less cross-fading from one to another assigned channel.
17. VOLUME Sound effect volume adjustment
