Vonyx STM2270 User Manual

5

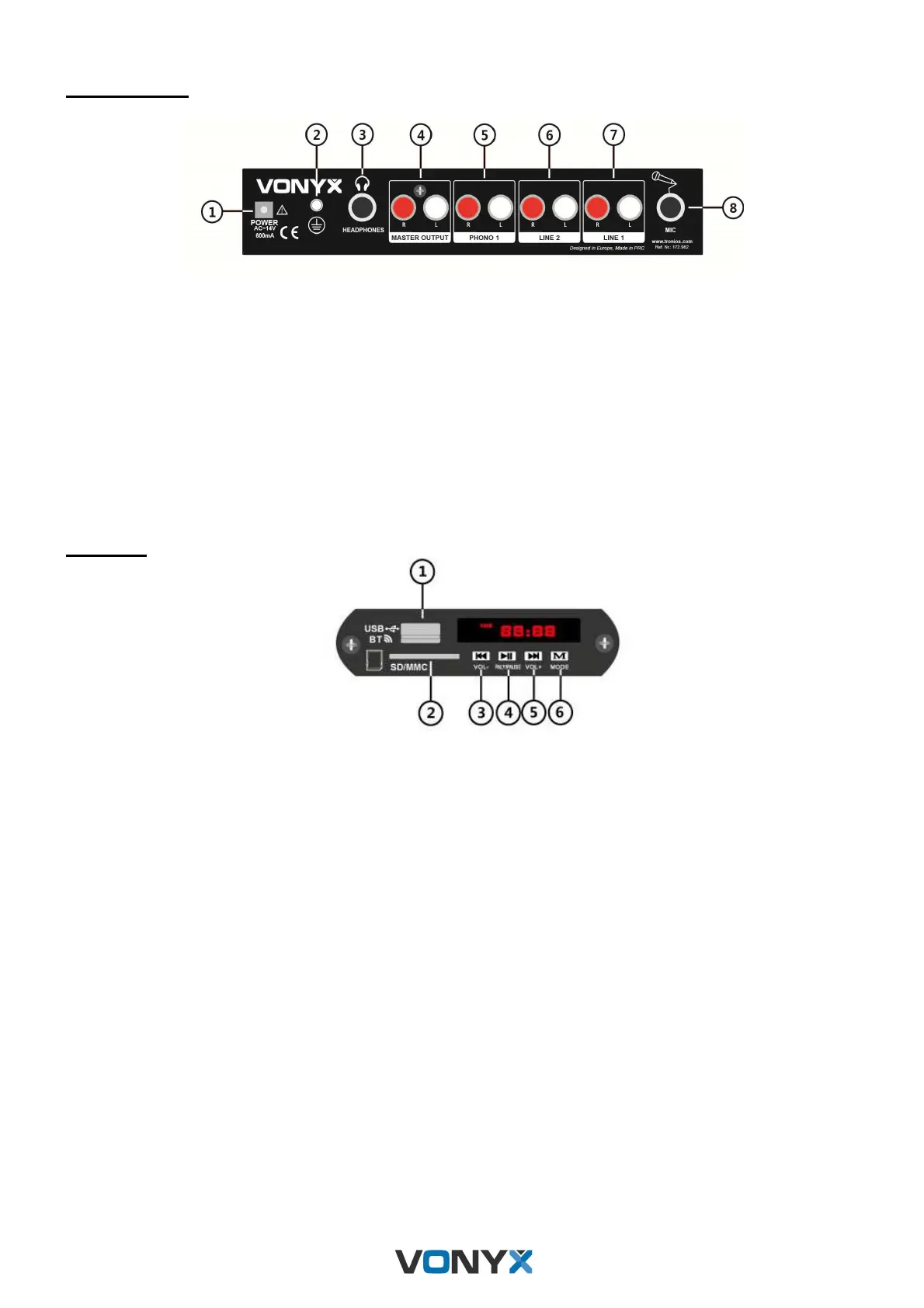

BACK PANEL
1. AC12V Connector for a power supply.
2. GND Grounding e.g. for a turn table
3. HEADPHONE Use the headphone for pre-listening the output signal.
4. MASTER OUTPUT The MASTER output jacks connect the mixer to your main amplifier using standard
audio cables with RCA-type connector.
5. PHONO signal input
6. LINE 2 signal input
7. LINE 1 signal input
8. Microphone input connector To insert your microphone
DISPLAY
1. USB INPUT Insert your USB flash drive into this slot. The unit will only read .mp3 file formats from the USB
flash drive.
2. SD Card INPUT Insert your SD CARD flash drive into this slot. The unit will only read .mp3 file formats from
the flash drive
3. MP3 Player Selects the previous track (short press) or volume decreasing (long press)
4. MP3 Player Starts the playback and pause function
5. MP3 PLAYER Selects the next track (short press) or volume increasing (long press)
6. MODE SELECTOR To allow you to select the input source
