• Twist eyecup down to view with glasses.
• Twist eyecup up to view without glasses.

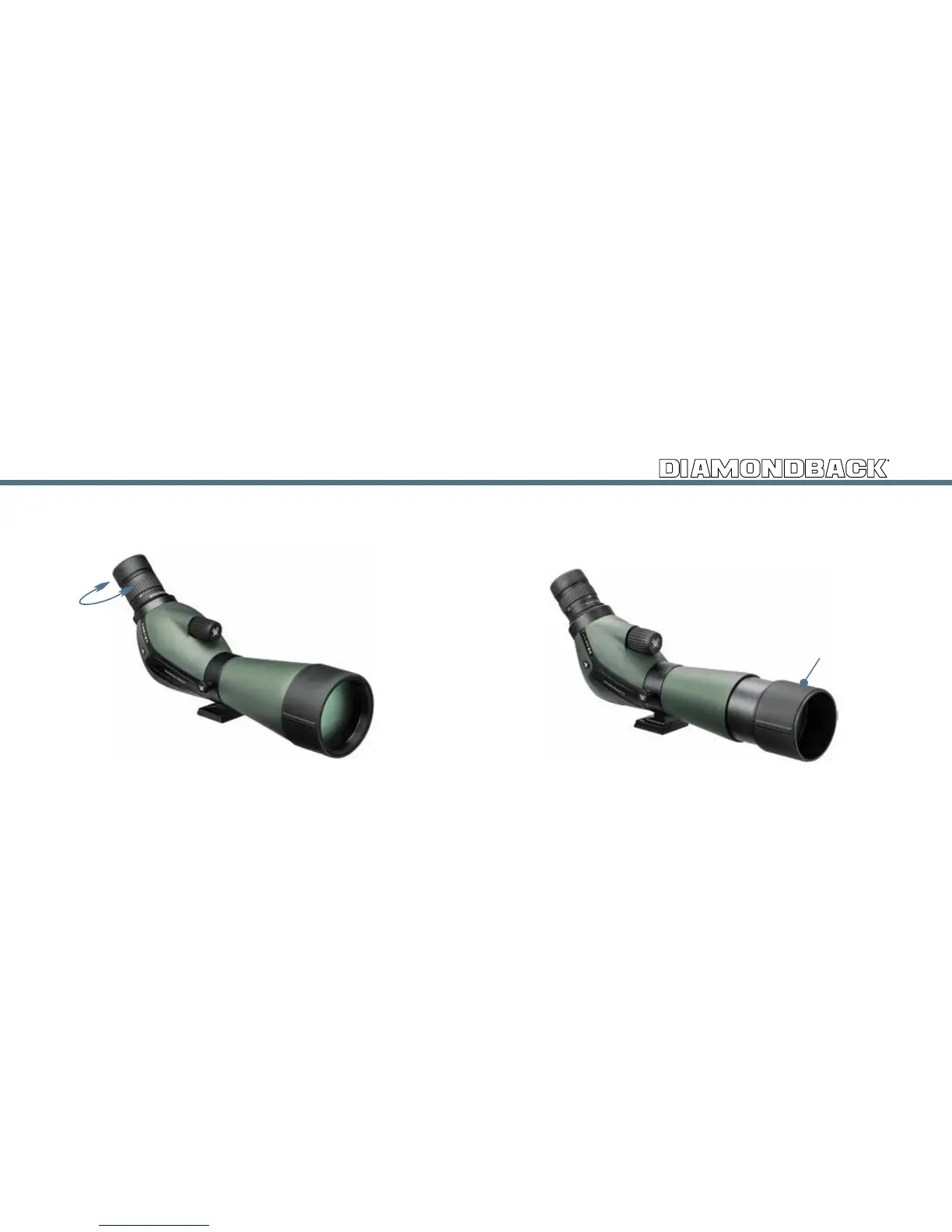

Adjust the sunshade
Block out stray light by extending the sunshade on the objective end of the spotting
scope. The sunshade also shields the objective lens from mechanical damage and guards
against soiling by fingerprints and precipitation.
Extend or retract the
sunshade as needed.
Adjustable Eyecup
Twists Up and Down
Adjust the eyecup
The adjustable eyecup twists up and down so that you can observe the full field of view,
even if you wear eyeglasses.

Vortex Diamondback Specifications

General

Exit pupil	3.6 mm
Eye relief	18 mm
Prism type	-
Waterproof	Yes
Lens coating	Fully Multi Coated (FMC)
Magnification	8 x
Product color	Black, Green
Objective diameter	28 mm
Field of view (at 1000 m)	101.19 m
Interpupillary distance (max)	74 mm
Interpupillary distance (min)	55 mm

Weight and Dimensions

Depth	- mm
Width	116.84 mm
Height	111.76 mm
Weight	396.89 g
