Radian
™
TRIPOD BALL HEAD
2 3

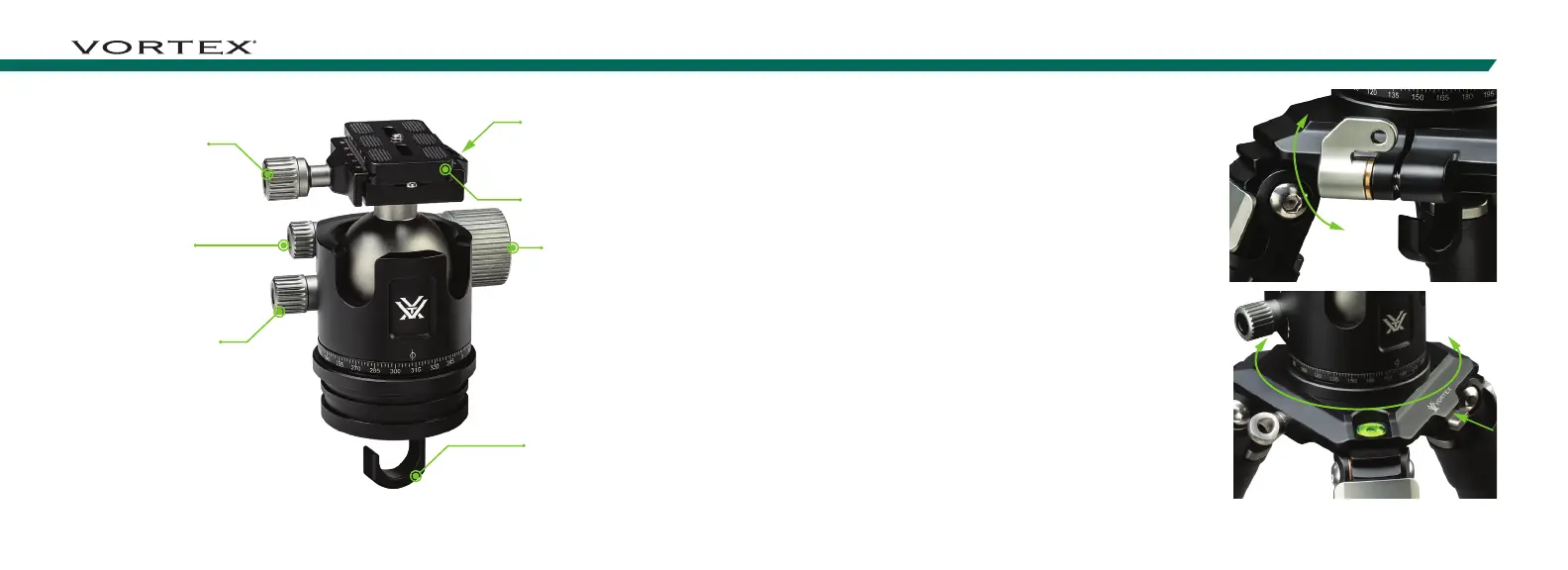

Attaching/Removing the Radian
™
Ball Head
To mount the ball head to the tripod:
1. Lift the Quick-Release Locking Latch on the tripod.
2. Press and hold the Platform Release Button and
fully seat ball head into the tripod. Once seated, the
ball head can be oriented in any direction.
3. Rotate the Quick-Release Locking Latch down to
the locked position.
4. To remove the ball head, follow these steps in
reverse order.
NOTE: If needed, the locking latch can be repositioned
by shifting the latch to the left and rotating the latch
up/down to reposition.
Ball Locking Knob
Quick-Release Plate
Quick-Release
Locking Knob
Bubble Level
Drag Tension Knob
Press the Quick-Release
Button on the tripod to seat
the ball head.
Quick-Release
Locking Latch
Base Panning Knob
Counterweight Hook
To help stabilize the tripod in windy
conditions, hang a weight from the
Counterweight Hook.
