CARBON TRIPOD KIT
BASIC ADJUSTMENTS

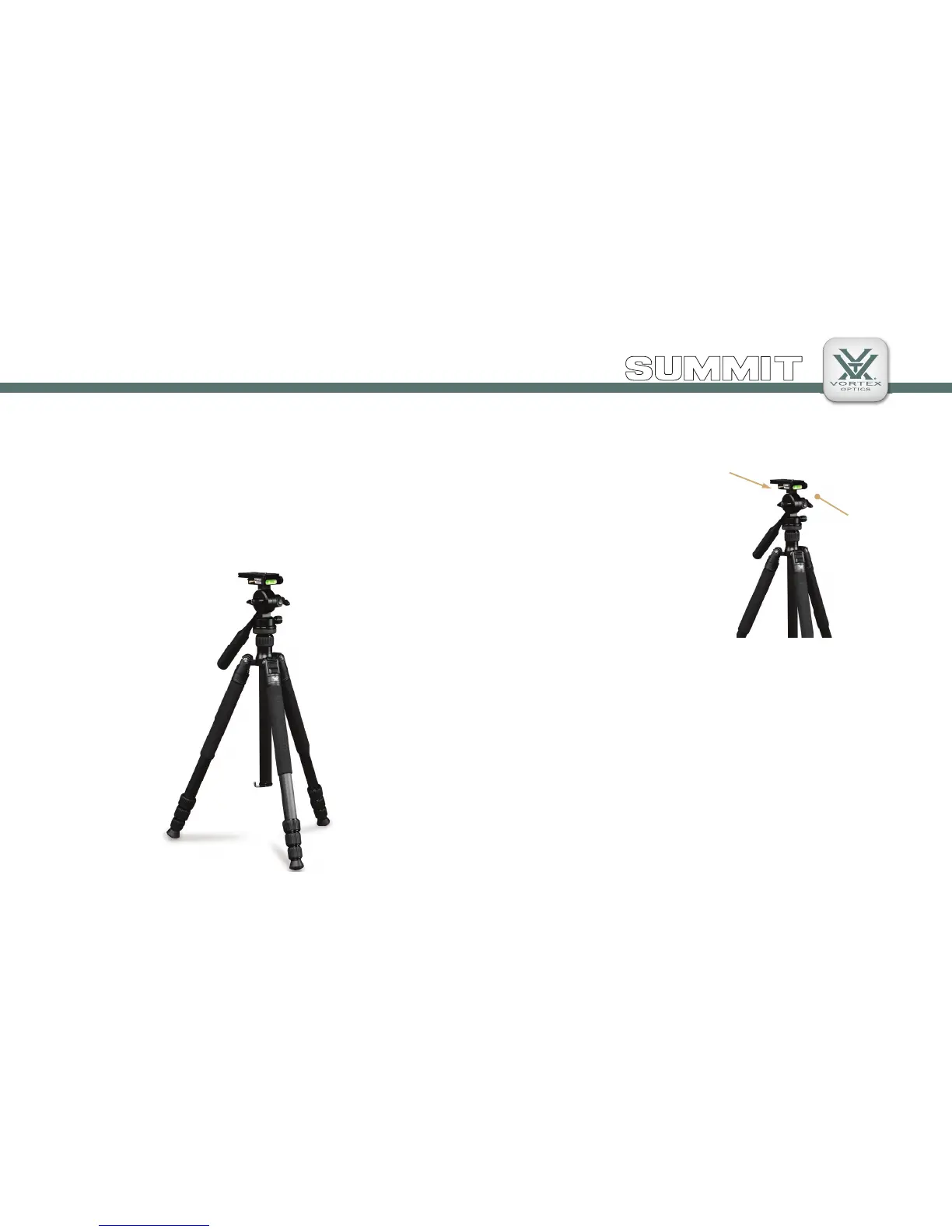

Adjusting the Fluid Pan Head
The Summit Carbon features a fl uid pan head that is easy to use.
Head Motion
To move the head, loosen the head adjustment wheel. Retighten once
you fi nd the desired position.
Attaching Optics to the Tripod
1. Loosen thumb bolt and
press the release button to
remove the plate.
2. Attach the plate to your
optic or camera. Be sure
and press the screw ring fl at
against the plate.
3. Place the quick-release
plate back into the plate
holder. Secure the plate in
place by tightening the thumb
bolt.
Head Movement
Adjustment
Lever
Thumb bolt
Release
button
Caution
To prevent unnecessary damage to your optics, take a few seconds to
remove your optic from the tripod before you move to a new location.
Spotting scopes and other optics may become damaged if carried
while attached to the tripod.
