VOSS 246 NX - Page 10

Assembly instructions VOSS quick connect system 246
NX
, page 10 of 18

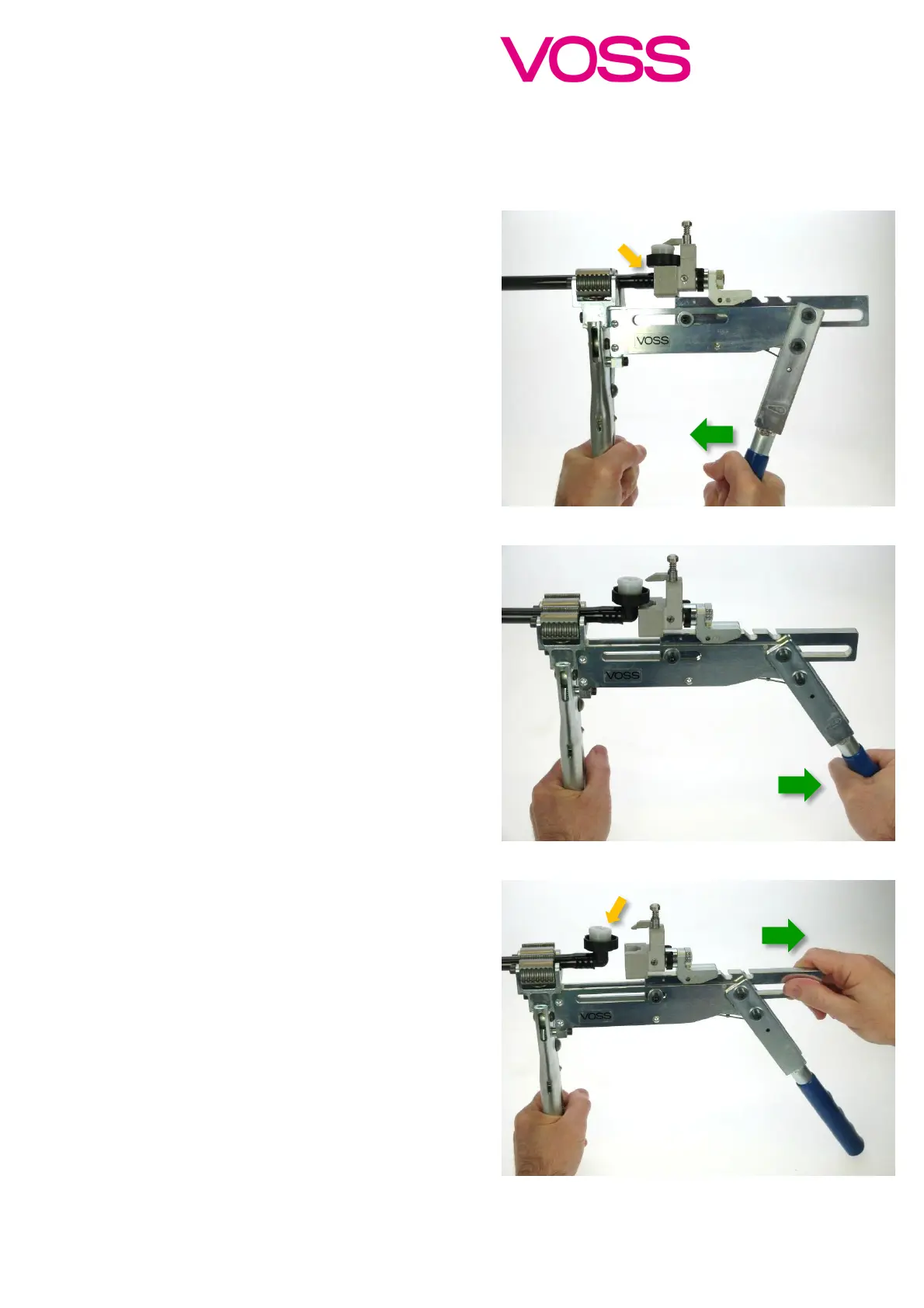

Step
7
The fir-tree has to be inserted completely into the nylon tube
with the insert lever, until the stop limit is reached. There
should be no gap > 0.5 mm.
Fig. 17
Step
8
Move the insert lever back.
Fig. 18
Step
9
Move the transport bar back. The plug is then released.
Fig. 19
