Assembly instructions VOSS quick connect system 246
NX
, page 9 of 18

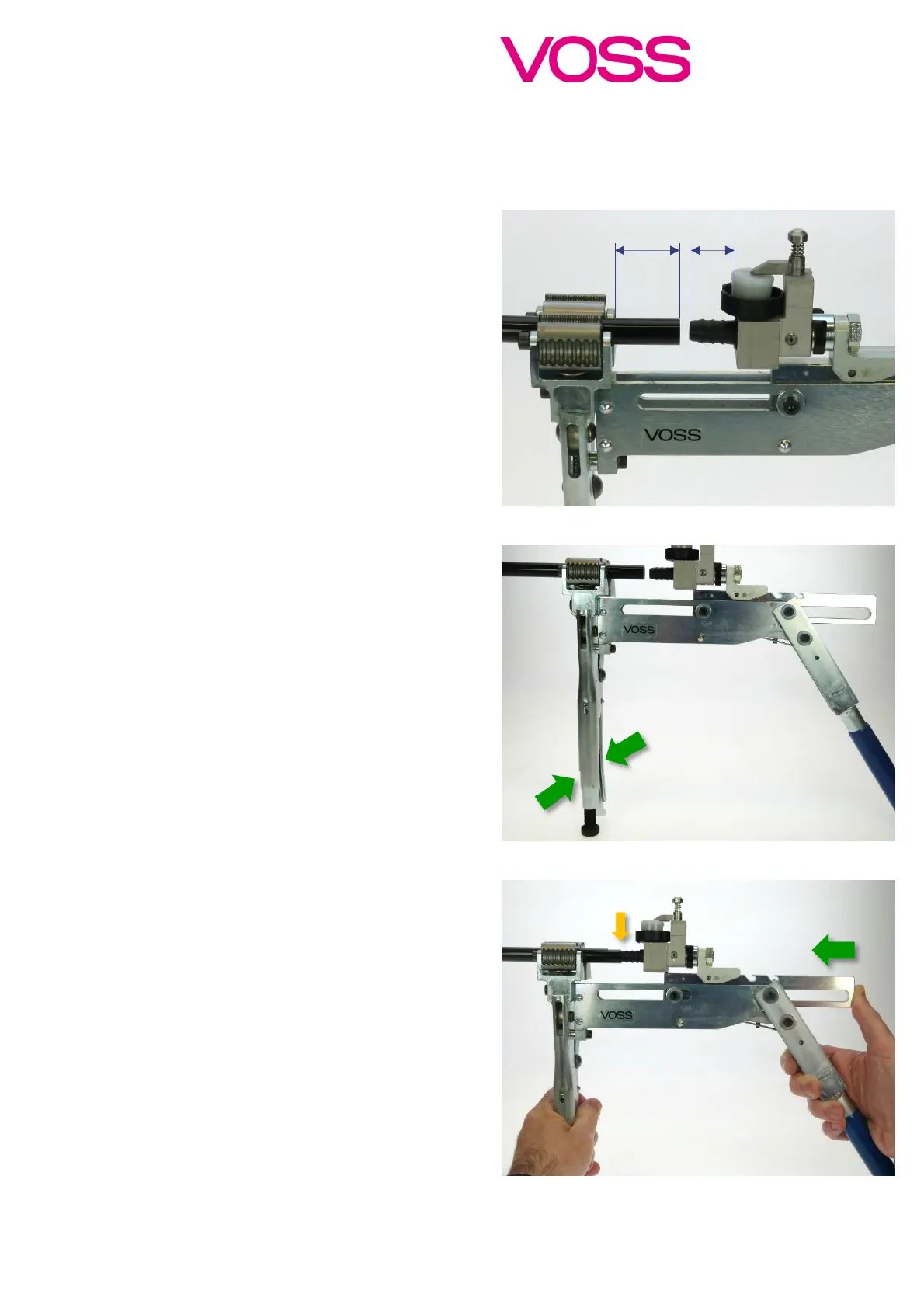

Step
4
Insert the nylon tube into the clamping jaws. The overlap
of the tube must be at least 2 mm longer than the length
of the plug’s fir-tree.
Fig. 14
Step
5
The vice-grip secures the nylon tube. The clamping force can
be regulated with the adjusting screw.
Fig. 15
Step
6
Move the transport bar, centering the fir-tree into the inner
diameter of the nylon tube.
Fig. 16
a L

a+2mm
