VOSS 246 NX - Page 8

Assembly instructions VOSS quick connect system 246
NX
, page 8 of 18

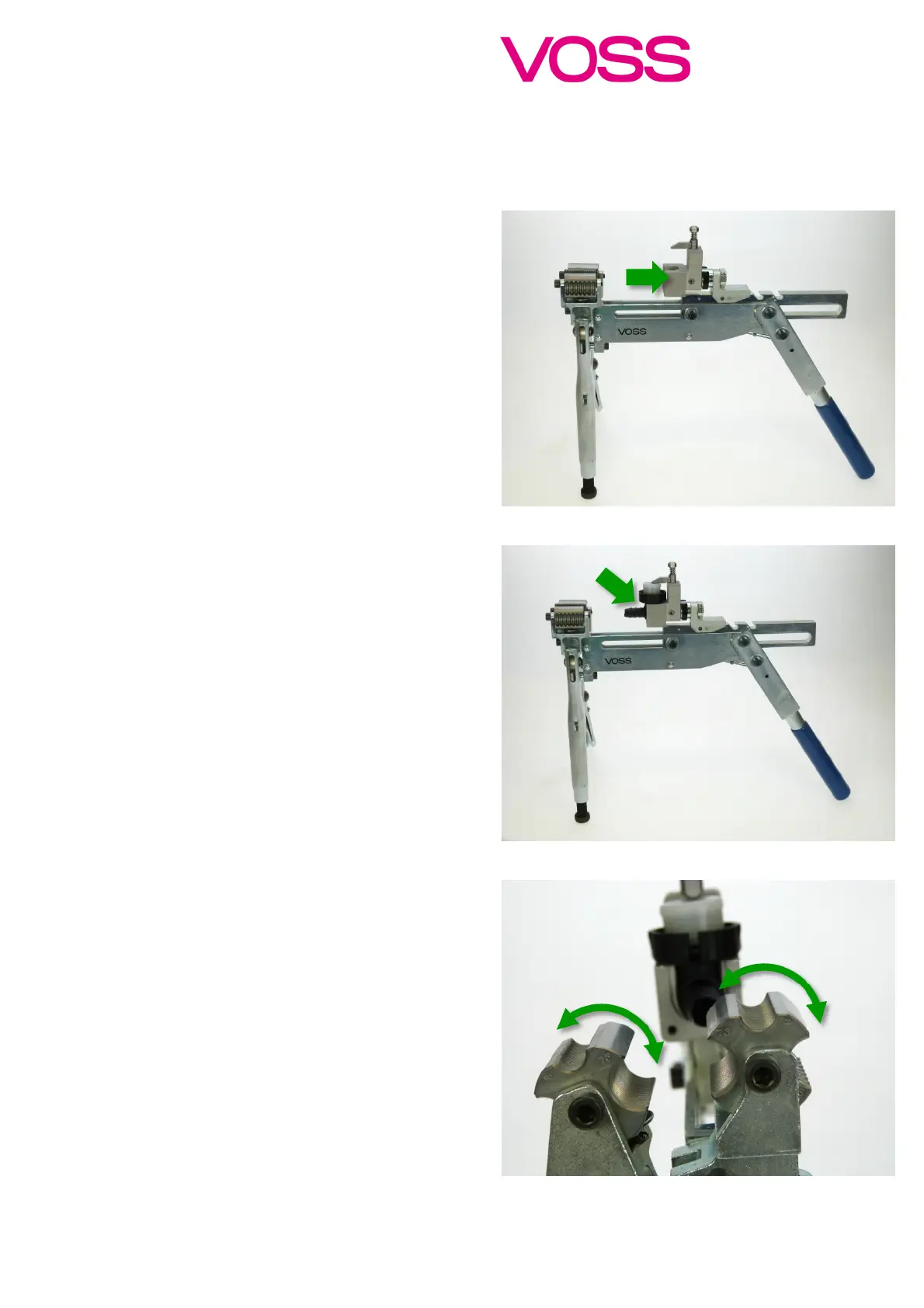

Step
1
Attach the correct tool mount into the intended plug
(straight or elbow).
Fig. 11
Step
2
Place the intended plug with protective cap into the tool
mount.
Fig. 12
Step
3
Clamp the jaws around the diameter of the tube.
Fig. 13
