VOSS 246 NX - Fir-tree insertion into nylon tube

Assembly instructions VOSS quick connect system 246
NX
, page 7 of 18
4.1.2. Insertion of the fir-tree into the nylon tube
When pressing the fir-tree into the nylon tube:
The insertion procedure must be performed at room temperature.
The nylon tube must not be heated.
The nylon tube must be undamaged.
The fir-tree profile must be clean and free of any grease.
The fir-tree profile must be undamaged; otherwise the connection to the nylon tube will
not be tight.
Insertion with the manual assembly tool
The manual assembly tool (fig. 10) is available from VOSS.

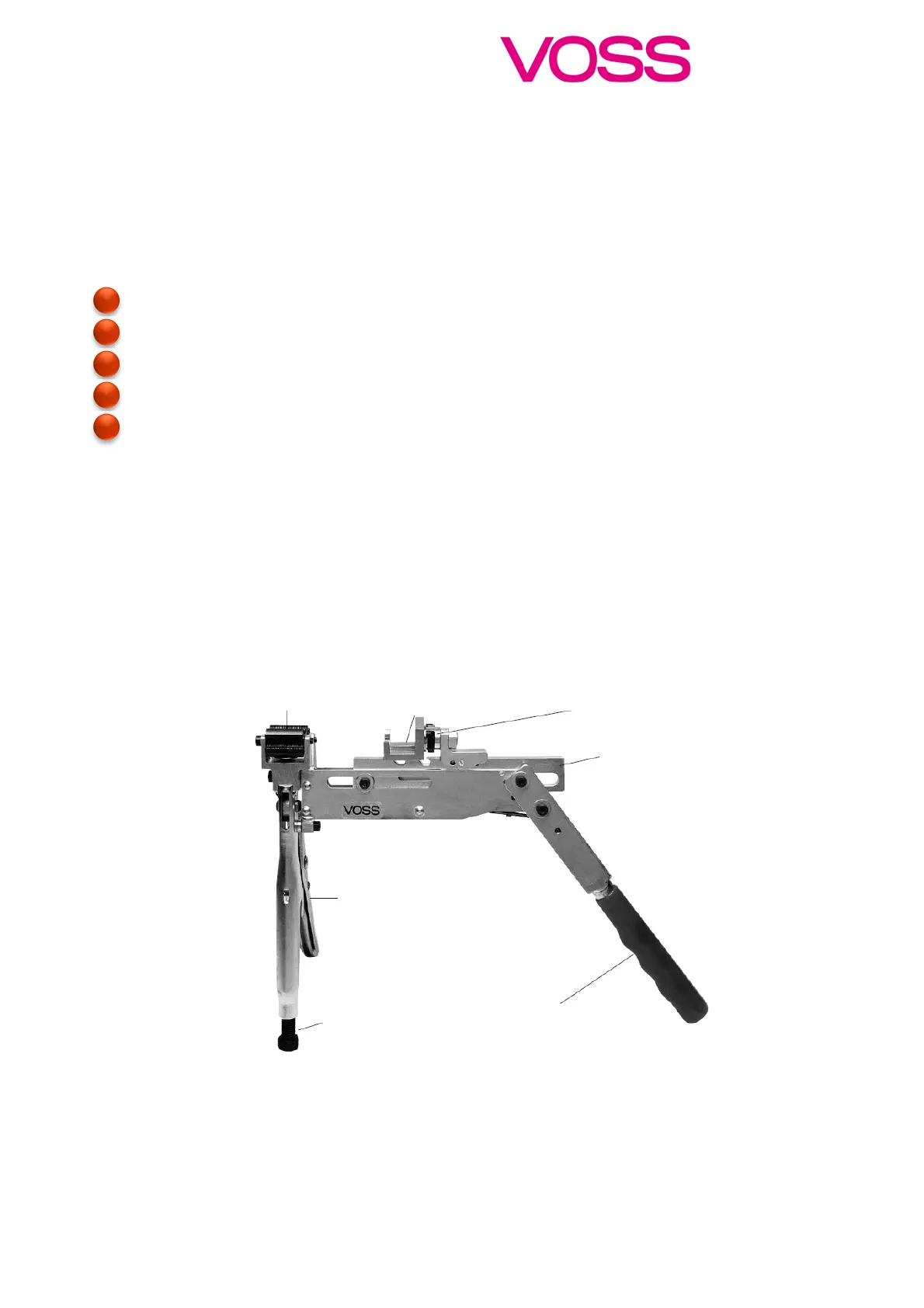

Fig. 10: VOSS manual assembly tool
!
!
!
!
!
Tube clamping jaws
Tool insert
Tool mount
Transport bar
Vice-grip
Adjusting screw Insert lever
