Assembly instructions VOSS quick connect system 246
NX
, page 12 of 18
Assembly machine for series assembly
VOSS offers the assembly machine type 56 for series assembly of nylon tubes on fir-trees.

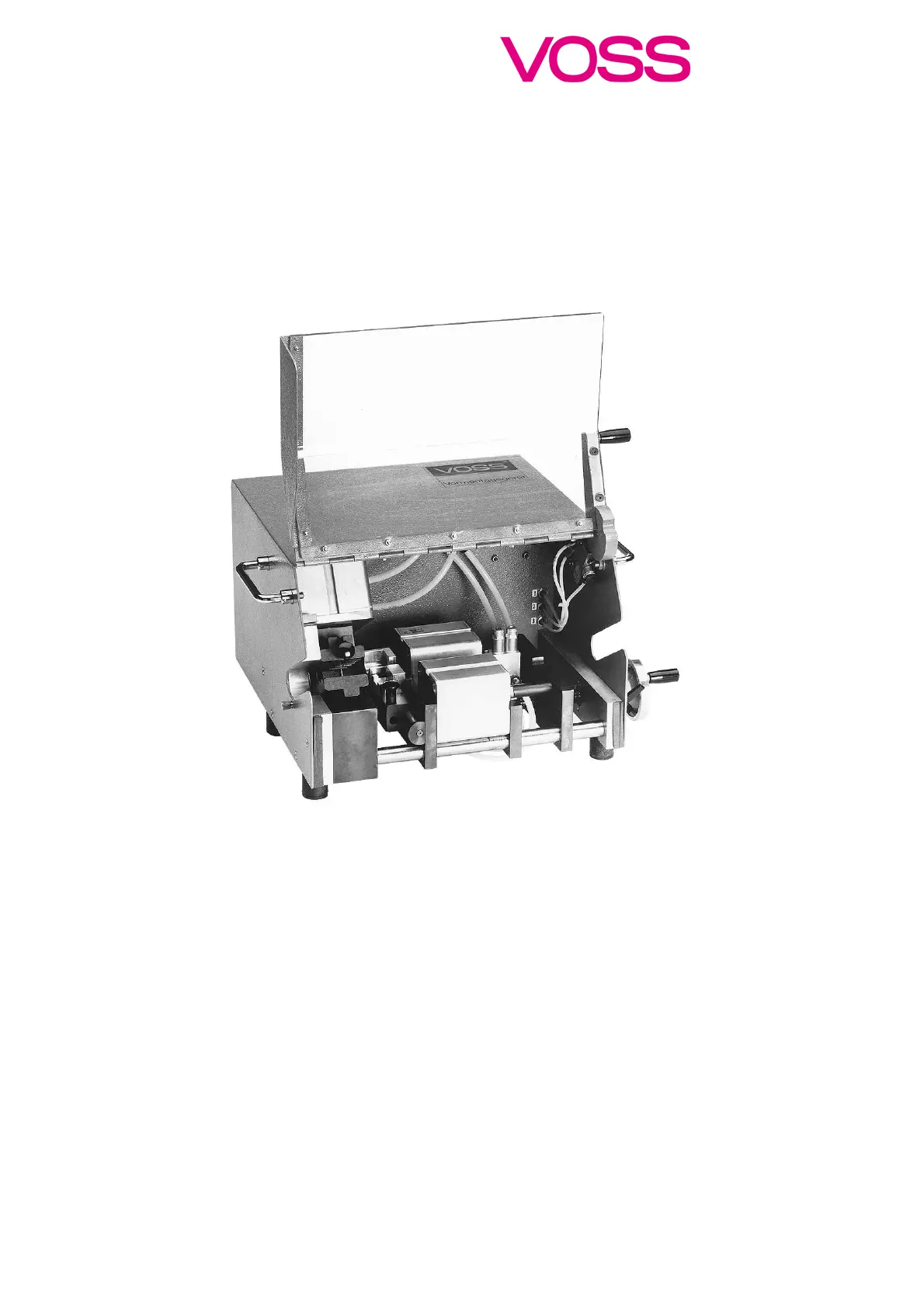

Fig. 22: VOSS assembly machine type 56
