VOSS 246 NX - Connecting quick connectors

Assembly instructions VOSS quick connect system 246
NX
, page 13 of 18
4.2. Inserting quick connectors into the connecting port
Before inserting the plug, check the connecting port, especially the bore-hole.
The connecting port must be clean and must not show any signs of damage.
The O-ring must be greased.

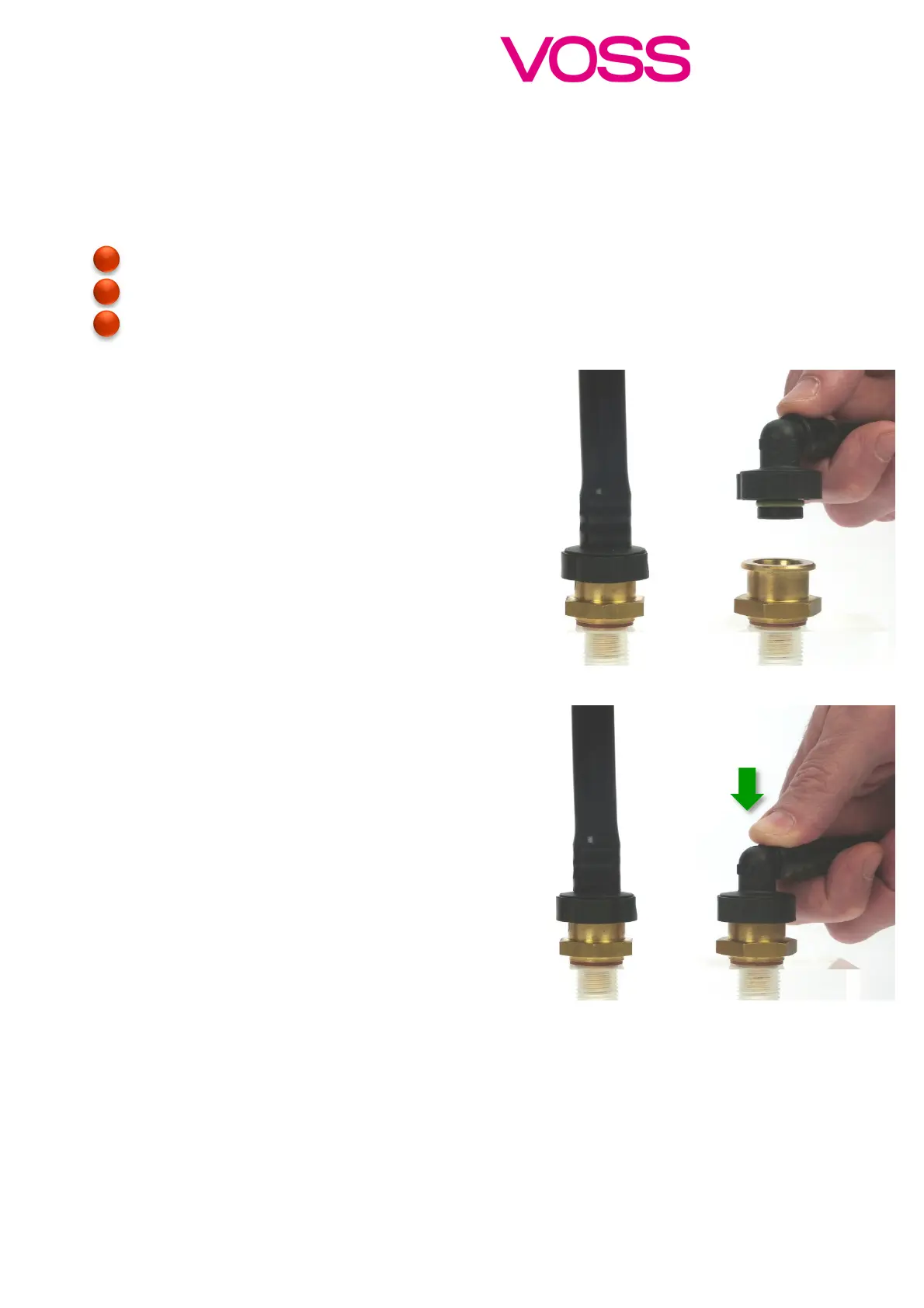

Initial situation
The plug with the tube mounted correctly on the fir-tree
above a connecting port
Fig. 23
Step
1
The VOSS quick connect system 246
NX
plug must be inserted
into the bore-hole until the retaining element locks below the
collar of the connecting port.
Fig. 24
!
!
!
