Assembly instructions VOSS quick connect system 246

, page 15 of 18

4.3. Disassembly

Before disconnecting, the line must be free of pressure.

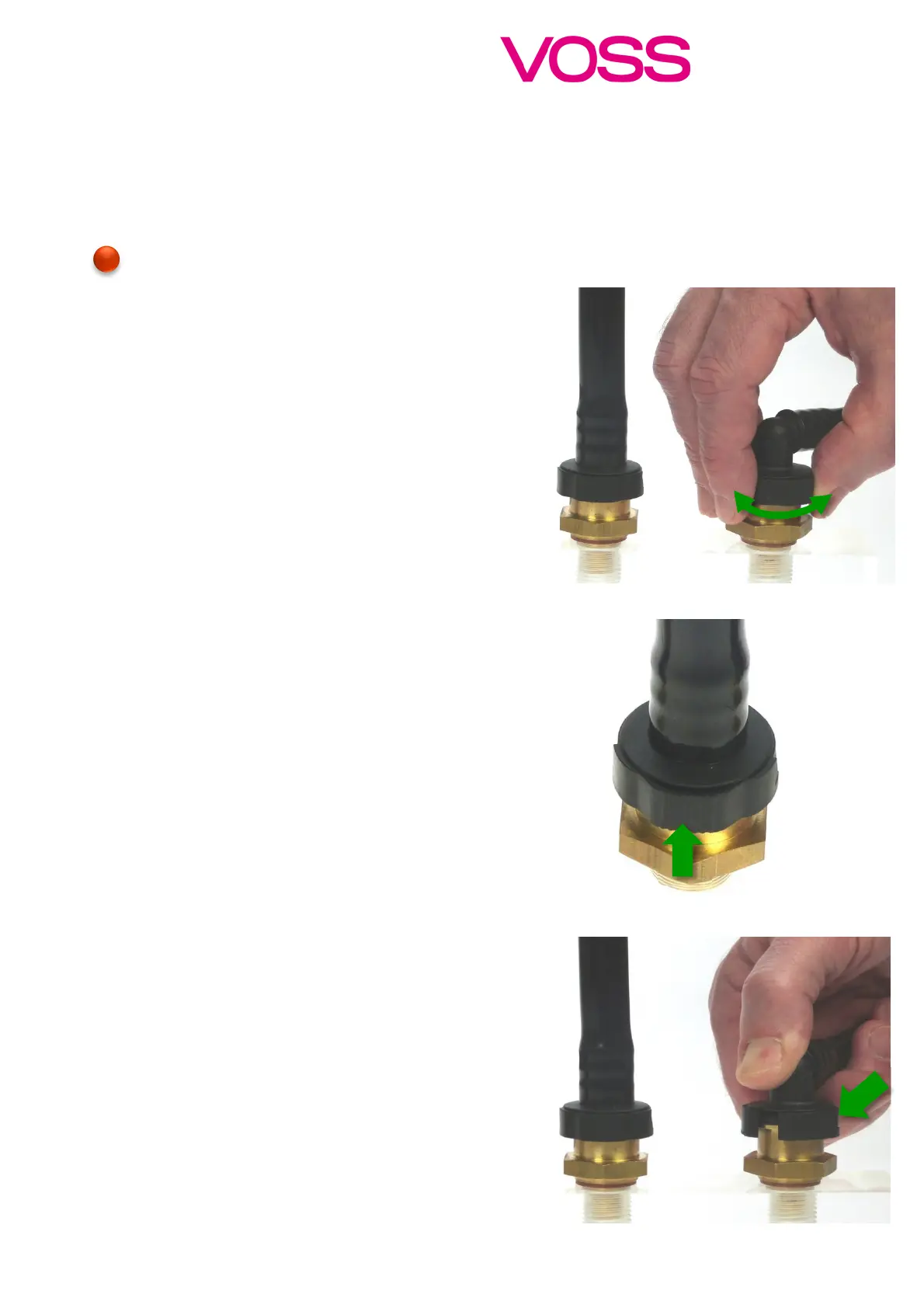

Step

To make disassembly easier, the retaining element can rotate

and be set into 8 different positions.

Fig. 27

Step 2

Press the corrugated segment of the retaining element to

open.

Fig. 28

Step 2, example no. 1

Observe the corrugated segment below the tube.

Release with index finger.

Fig. 29
