VOSS 246 NX - Page 16

Assembly instructions VOSS quick connect system 246
NX
, page 16 of 18

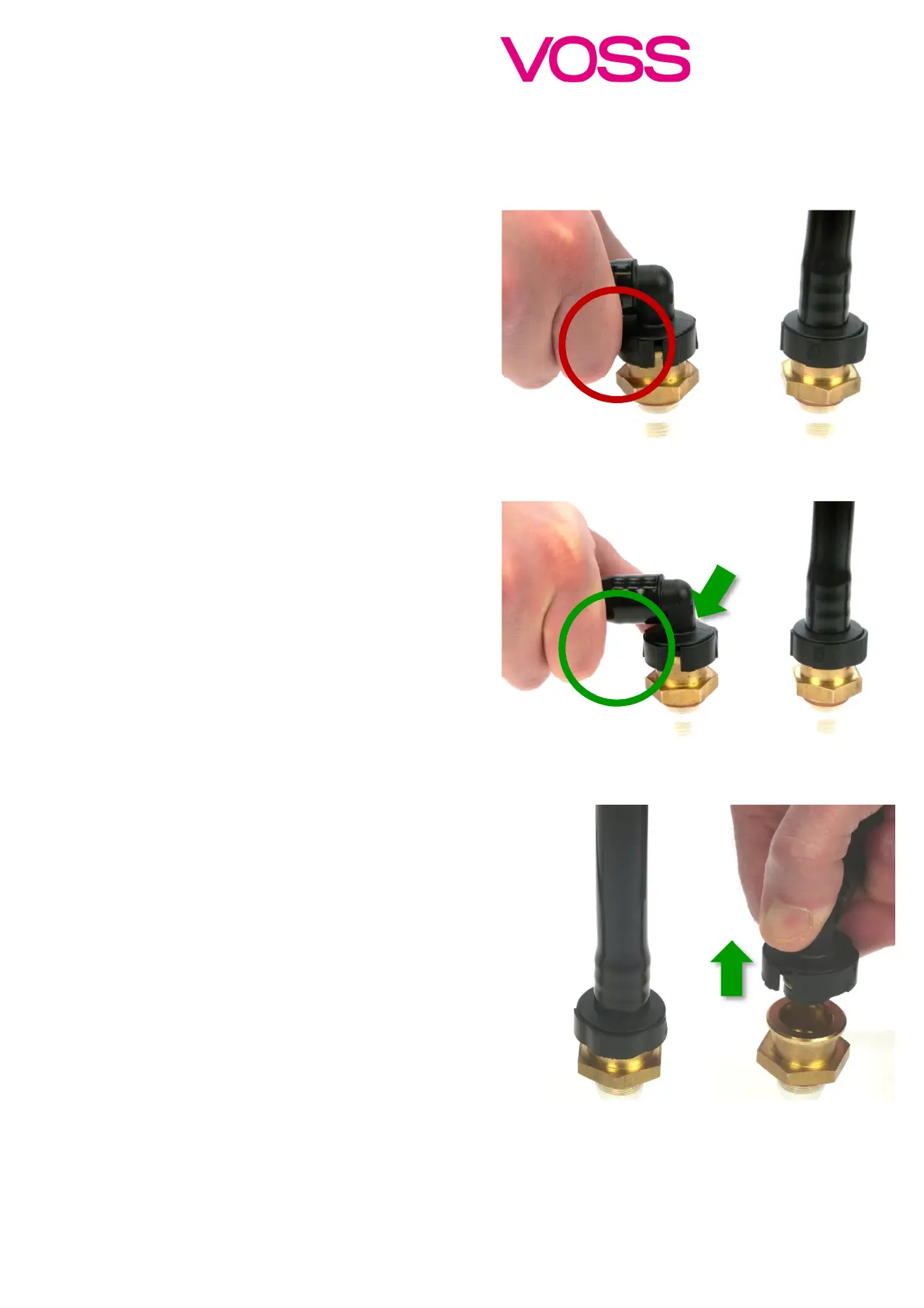

Step 2, example no. 2
(not convenient
)
Observe the corrugated segment on the side.
Release with the thumb.
The hand impedes the circular release element.
Fig. 30
Step 2, example no. 2 (recommended)
Observe the corrugated segment on the side.
Release with the thumb.
The hand does not impede the circular release element.
Fig. 31
Step 3
While keeping the pressure on the release element, the plug
can be pulled out of the connecting port.
