- 9 -
Charging Programs for LiFePO4-Batteries:
• The charging regulations of the battery manufacturer
are absolutely to be observed!
• An operation of the unit at a LiFePO4 battery without BMS Battery Management System and without
equalization charging of the cells (balancing) as well as safety circuit is not admissible!
• A battery temperature sensor must be installed at the battery (screw to the negative pole) and
connected at the unit. It serves as protection for the battery!
• If possible, the battery temperature must be kept above 0 °C.
Note: The possible parallel/floating operation with consumers being connected to the battery is also
automatically considered by all charging programs.

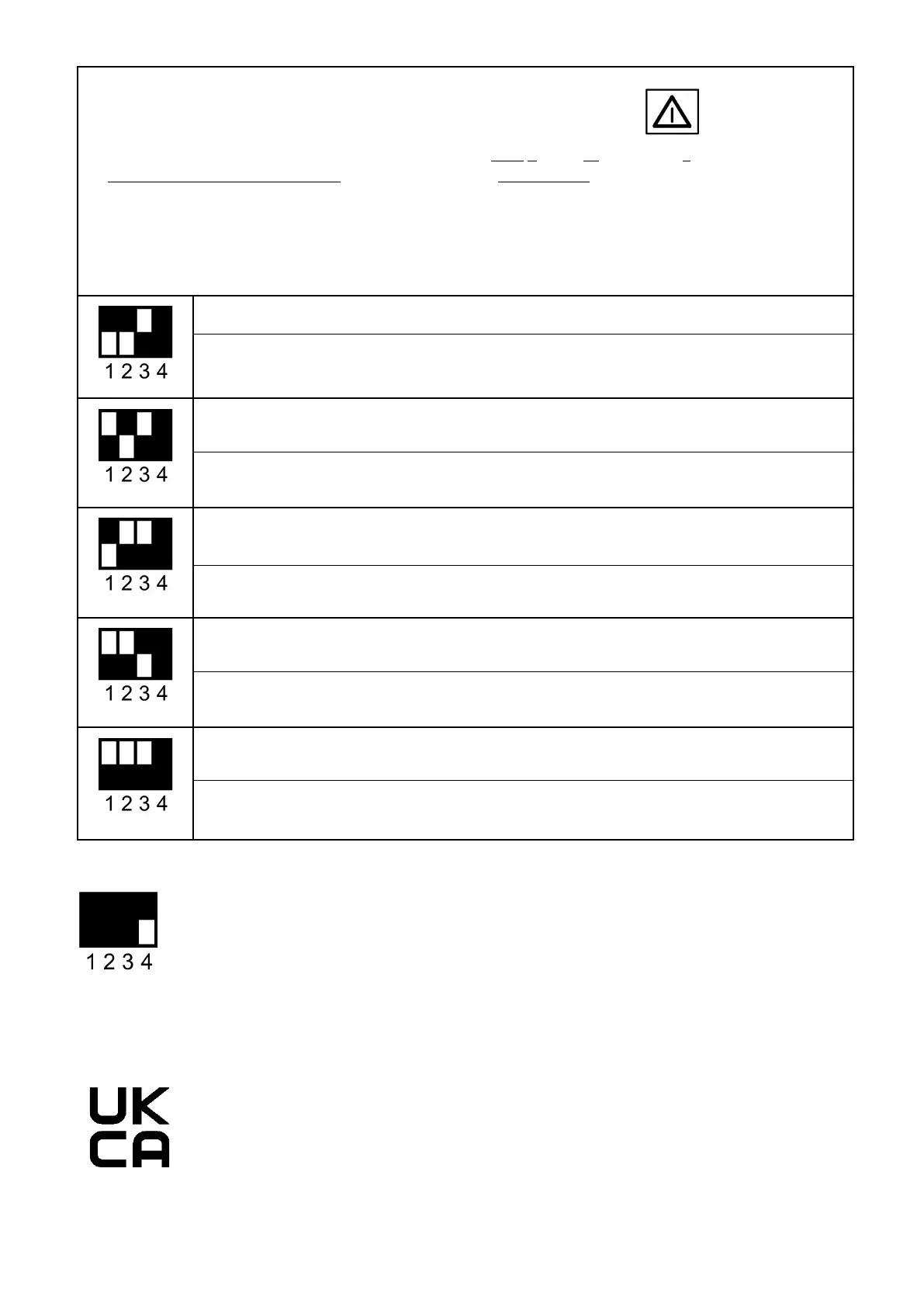

d) "LiFePO4 13.9 V": Charging program IU1oU2
U1 Main/Full Charging: 13.90 V 0.5-1 h
U2 Full/Trickle/Storage Charging: 13.90 V Continuous
e) "LiFePO4 14.2 V": Charging program IU1oU2
U1 Main/Full Charging: 14.20 V 0.5-1 h
U2 Full/Trickle/Storage Charging: 13.60 V Continuous
f) "LiFePO4 14.4 V": Charging program IU1oU2
U1 Main/Full Charging: 14.40 V 0.3-1 h
U2 Full/Trickle/Storage Charging: 13.80 V Continuous
g) "LiFePO4 14.6 V": Charging program IU1oU2
U1 Main/Full Charging: 14.60 V 0.3-1 h
U2 Full/Trickle/Storage Charging: 13.60 V Continuous
h) "LiFePO4 13.2 V": Hibernation characteristic matched to all common LiFePO4 batteries.
Battery is kept at approx. 50 - 80%.
Holding voltage: 13.20 V Continuous
4. Slide Switches (CI-Bus adress switching):
The fourth slide switch is required for parallel operation of several CI-BUS solar controllers
on one CI-BUS line. The setting is made by the system integrator and has no significance
for operation without CI-BUS connection.
4. slide switch leave standard on "OFF" (bottom, see figure on the left)!
Further actions at the unit are not required during normal automatic mode.
Declaration of Conformity:
In accordance with the provisions of the statutory requirements and the relevant directives, Electrical
Equipment (Safety) Regulations 2016, Electromagnetic Compatibility Regulations 2016, The Restriction of
the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 this
product complies with the following standards or normative documents:
BS EN55014-1; BS EN61000-6-1; BS EN61000-4-2; BS EN61000-4-3; BS EN61000-4-4; BS EN62368-1;
BS EN50498, BS EN IEC 63000.
