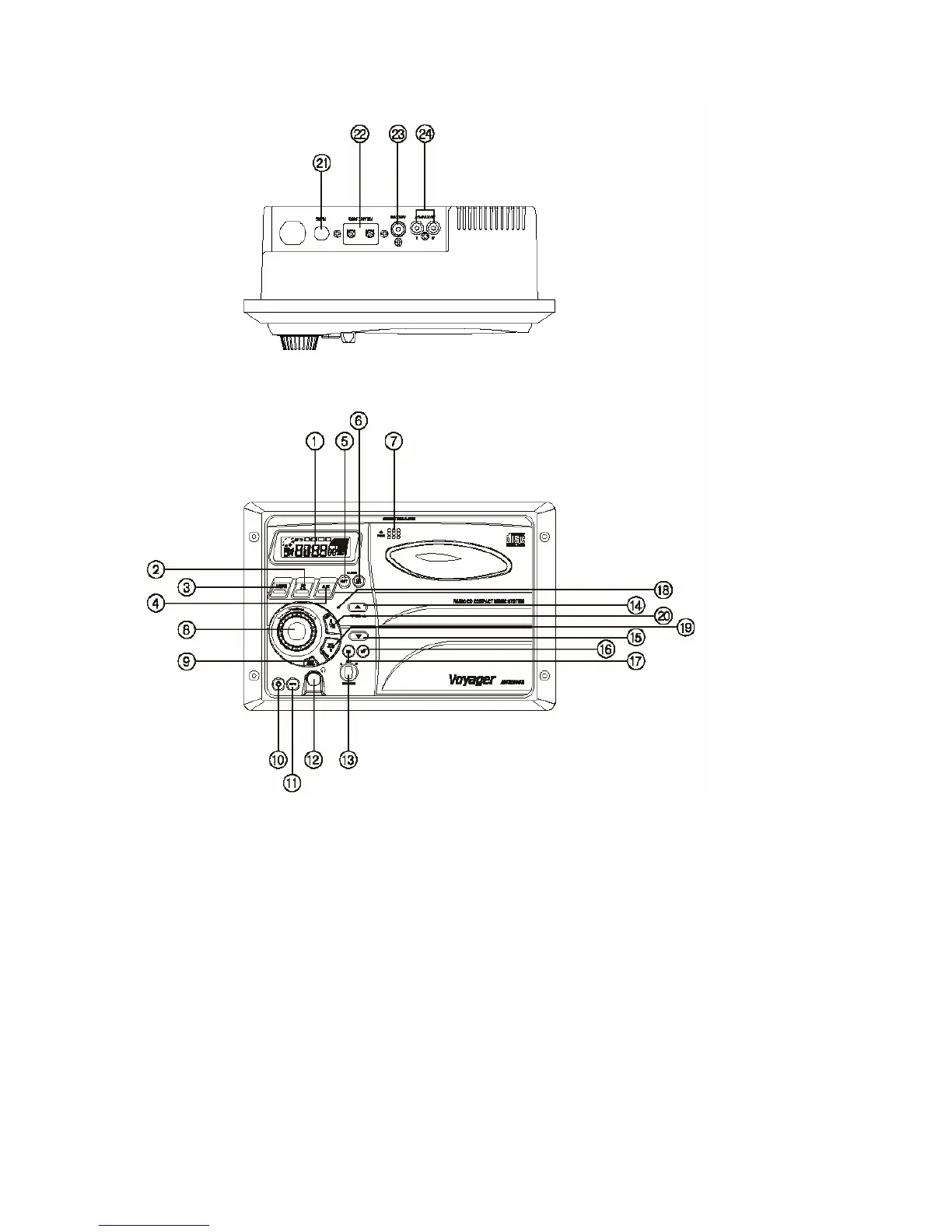

Controls Identification:
Controls Identification
1) Display Window
2) CD Play/Pause Button
3) Band(AM/FM) Button
4) AUX Selector Button
5) Alarm Set Button
6) Alarm On/Off Buttons
7) CD Eject Button
8) Radio Tuning Control
9) Audio Adjust Selector Button (Volume,
Bass, Treble, Balance)
10) Power Switch
11) Mute Button
12) Stereo Headphone Jack
13) Speaker Selector
14) Volume Up Control Button
15) Volume Down Control Button
16) Time/Frequency Selector Button
17) Preset EQ Button (Rock, Pop,
Classic)
18) Reset Button
19) Track Up / Minute Set Button
20) Track Down /Hour Set Button
21) Fuse
22) FM Antenna Terminals
23) Car Antenna Jack- 75 Ohm
24) RCA Auxiliary Input Jacks
