Voyager AWM900S - Installation and Wiring; Wiring Color Code

Page 6

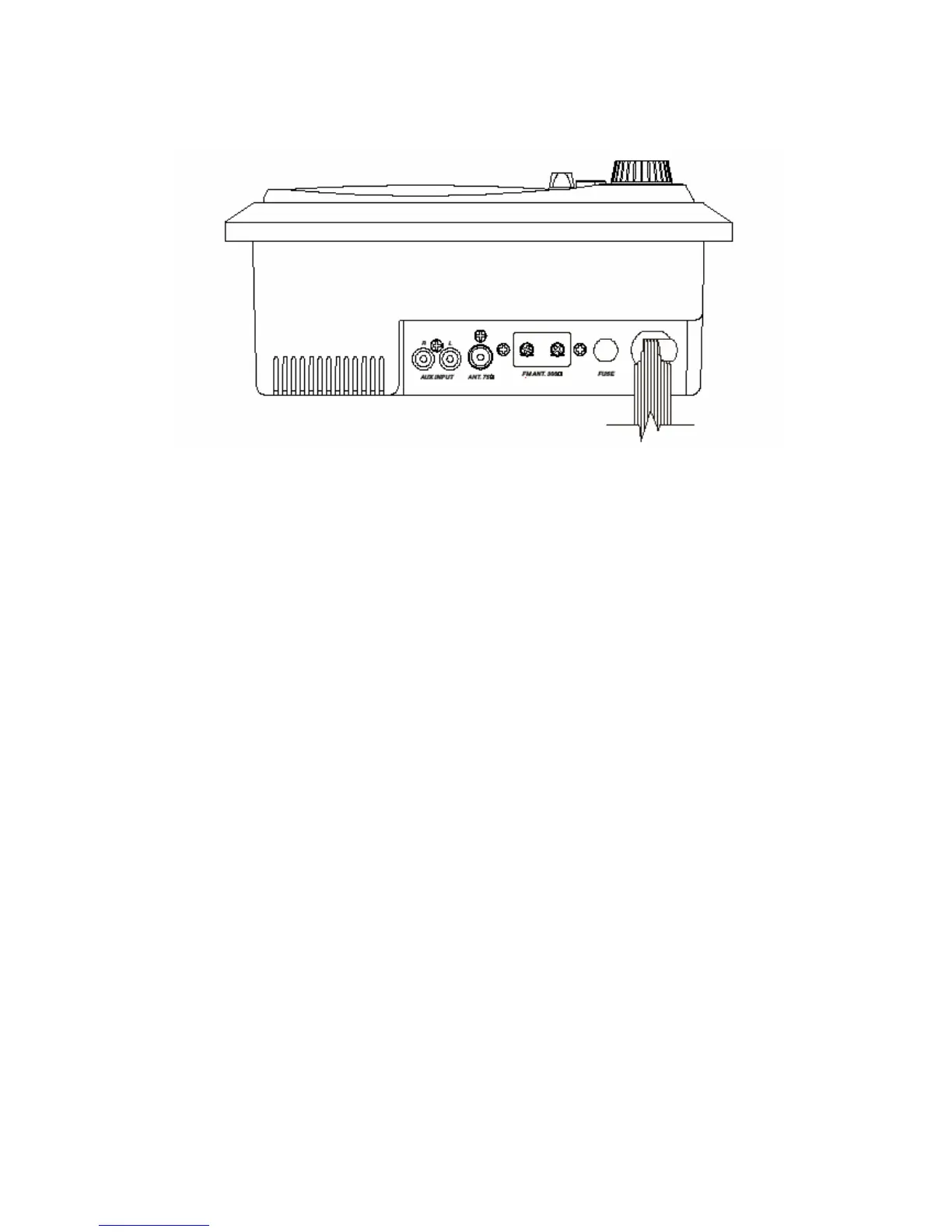

Wiring Color Code:
WIRING COLOR CODE
FOR AWM-900S
COLOR FUNCTION
ORANGE/WHITE STRIPE +12VDC IGNITION POWER
GREEN/WHITE STRIPE +12VDC BATTERY POWER
BLACK/WHITE STRIPE POWER GROUND (-12VDC)
WHITE LEFT (A) SPEAKER (+)
VIOLET LEFT (A) SPEAKER (-)
BLUE RIGHT (A) SPEAKER (+)
LIGHT GREEN RIGHT (A) SPEAKER (-)
RED LEFT (B) SPEAKER (+)
VIOLET/BLACK STRIPE LEFT (B) SPEAKER (-)
YELLOW RIGHT (B) SPEAKER (+)
LT GREEN/BLACK STRIPE RIGHT (B) SPEAKER (-)
