PCB LAYOUT AND MOUNTING
SINGLE MODULE, RECEIVER, TRIPADDLE, ICON, 96 POSITION,
FULLY LOADED WITH FEMALE CONTACTS • PART # 510 160 108

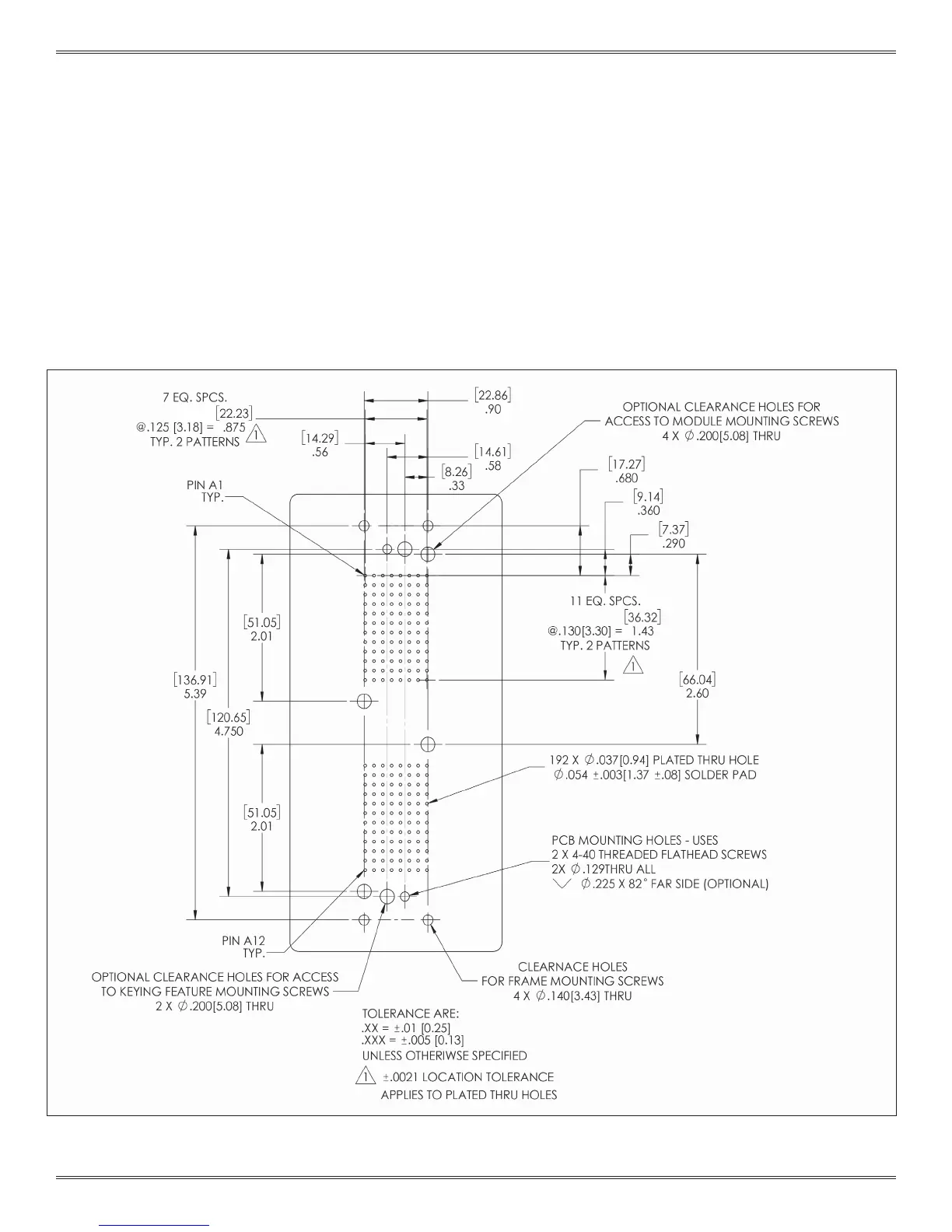

PCB layout for the iCon Receiver, Part # 310 123 101 loaded with two 510 160 108 modules.
Thru hole and pad diameters are for VPC TriPaddle Adapter Contact, Part #610 110 179.
The size of these holes may be different if a header from a different manufacturer is used.
Also shown are optional clearance holes.
VPC modules/pin mount this side.
